合肥盆地中郯庐断裂带西支乌云山-合肥断裂最新活动特征

郑颖平¹⁾, 杨晓平²⁾, 疏鹏^1,²⁾, 路硕¹⁾, 方良好¹⁾, 石金虎³⁾, 黄雄南²⁾, 刘春茹²⁾

1) 安徽省地震局, 合肥 230031

2) 中国地震局地质研究所, 活动构造与火山重点实验室, 北京 100029

3) 中国地震局地球物理勘探中心, 郑州 450002

〔作者简介〕郑颖平, 女, 1980年生, 2006年于安徽理工大学获地质工程专业硕士学位,高级工程师, 主要从事活断层探测、地震安全性评价和地震地质等相关工作, E-mail: ypzheng2006@163.com。

收稿日期: 2018-08-31

基金项目: “合肥市地震活断层探测及地震危险性分析”项目和中国地震局地震科技星火计划青年项目(XH19017Y)共同资助

摘要

前人对于郯庐断裂带安徽段出露部分的活动性开展了不同程度的研究, 并获得了丰富的成果, 而对于隐伏于合肥盆地中的段, 其活动性如何, 甚至断裂是否存在一直未能取得明确认识。文中利用浅层地震勘探及钻探联合地质剖面探测方法, 对隐伏于合肥盆地中的郯庐断裂带西分支断层——乌云山-合肥断裂开展了详细的探测研究工作, 在合肥城区由北向南跨断裂布设了4条浅层地震勘探测线和2排联合钻孔剖面, 采用¹⁴C、 OSL和ESR 3种测年手段共获得了34个钻孔地层剖面样品的年龄数据, 结果显示乌云山-合肥断裂错动的最新地层为中更新统青灰色黏土层, 断层活动表现为逆断性质, 最大垂直错距达2.4m, 最新活动时代为中更新世晚期, 上断点最浅埋深达17m。文中研究证实了郯庐断裂带穿切合肥盆地, 且第四纪以来仍有活动, 所得成果充实了对郯庐断裂带安徽段总体活动的认识。

关键词: 郯庐断裂带; 隐伏断层; 钻探联合地质剖面探测; 最新活动; 合肥盆地

中图分类号:P315.2 文献标志码:A 文章编号:0253-4967(2020)01-0050-15

STUDY ON THE LATEST ACTIVITY OF WUYUNSHAN-HEFEI FAULT IN HEFEI BASIN, THE WESTERN BRANCH OF THE TANLU FAULT ZONE

ZHENG Ying-ping¹⁾, YANG Xiao-ping²⁾, SHU Peng^1,²⁾, LU Shuo¹⁾, FANG Liang-hao¹⁾, SHI Jin-hu³⁾, HUANG Xiong-nan²⁾, LIU Chun-ru²⁾

1) Anhui Earthquake Agency, Hefei 230031, China

2) Key Laboratory of Active Tectonics and Volcano, Institute of Geology, China Earthquake Administration, Beijing 100029, China

3) Geophysical Exploration Center, China Earthquake Administration, Zhengzhou 450002, China

Abstract

Tanlu fault zone is the largest strike-slip fault system in eastern China. Since it was discovered by aeromagnetics in 1960s, it has been widely concerned by scholars at home and abroad, and a lot of research has been done on its formation and evolution. At the same time, the Tanlu fault zone is also the main seismic structural zone in China, with an obvious characteristic of segmentation of seismicity. Major earthquakes are mostly concentrated in the Bohai section and Weifang-Jiashan section. For example, the largest earthquake occurring in the Bohai section is M7.4 earthquake, and the largest earthquake occurring in the Weifang-Jiashan section is M8.5 earthquake. Therefore, the research on the active structure of the Tanlu fault zone is mainly concentrated in these two sections. With the deepening of research, some scholars carried out a lot of research on the middle section of Tanlu fault zone, which is distributed in Shandong and northern Jiangsu Province, including five nearly parallel fault systems, i.e. Changyi-Dadian Fault(F₁), Baifenzi-Fulaishan Fault(F₂), Yishui-Tangtou Fault(F₃), Tangwu-Gegou Fault(F₄)and Anqiu-Juxian Fault(F₅). They find that the faults F₃ and F₅ are still active since the late Quaternary. In recent years, we have got a further understanding of the geometric distribution, active age and active nature of Fault F₅, and found that it is still active in Holocene. At the same time, the latest research on the extension of F₅ into Anhui suggests that there is a late Pleistocene-Holocene fault existing near the Huaihe River in Anhui Province.
The Tanlu fault zone extends into Anhui Province and the extension section is completely buried, especially in the Hefei Basin south of Dingyuan. At present, there is little research on the activity of this fault segment, and it is very difficult to study its geometric structure and active nature, and even whether the fault exists has not been clear. Precisely determining the distribution, active properties and the latest active time of the hidden faults under urban areas is of great significance not only for studying the rupture behavior and segmentation characteristics of the southern section of the Tanlu fault zone, but also for providing important basis for urban seismic fortification. By using the method of shallow seismic prospecting and the combined drilling geological section, this paper carries out a detailed exploration and research on the Wuyunshan-Hefei Fault, the west branch fault of Tanlu fault zone buried in Hefei Basin. Four shallow seismic prospecting lines and two rows of joint borehole profiles are laid across the fault in Hefei urban area from north to south. Using¹⁴C, OSL and ESR dating methods, ages of 34 samples of borehole stratigraphic profiles are obtained. The results show that the youngest stratum dislocated by the Wuyunshan-Hefei Fault is the Mesopleistocene blue-gray clay layer, and its activity is characterized by reverse faulting, with a maximum vertical offset of 2.4m. The latest active age is late Mesopleistocene, and the depth of the shallowest upper breaking point is 17m. This study confirms that the west branch of Tanlu fault zone cuts through Hefei Basin and is still active since Quaternary. Its latest activity age in Hefei Basin is late of Middle Pleistocene, and the latest activity is characterized by thrusting. The research results enrich the understanding of the overall activity of Tanlu fault zone in the buried section of Hefei Basin and provide reliable basic data for earthquake monitoring, prediction and earthquake damage prevention in Anhui Province.

Keyword: Tanlu fault zone; buried fault; composite drilling geological section; latest activity; Hefei Basin

文章图片

0 引言

郯庐断裂带是中国东部最大的走滑断裂系, 自20世纪60年代通过航磁发现其存在以来, 受到了国内外学者的广泛关注, 并对其形成、演化过程进行了大量的研究(Xu et al., 1987; 徐嘉炜等, 1992, 1995; Yin et al., 1993; Gilder et al., 1999; 朱光等, 2005)。郯庐断裂带还是中国主要的地震构造带, 其地震活动分段特征明显, 大地震多集中在潍坊— 嘉山段和渤海段, 如在渤海段曾发生1597年和1548年M7地震、 1975年M7.3地震和1969年M7.4地震等, 潍坊— 嘉山段发生过70BC安丘M7地震和1668年郯城M81/2地震等, 因此关于郯庐断裂活动构造的研究多集中于这2段(方仲景等, 1987; 李家灵等, 1994; 施炜等, 2003)。随着研究的深入, 不同学者对郯庐断裂分布在山东及苏北境内的中段, 即昌邑-大店断裂(F₁)、白芬子-浮来山断裂(F₂)、沂水-汤头断裂(F₃)、鄌郚-葛沟断裂(F₄)和安丘-莒县断裂(F₅)等5条近平行的断裂系开展了丰富的研究工作(晁洪太等, 1994; 李家灵等, 1994; 王志才等, 2005; 曹筠等, 2017), 认为F₃和F₅断裂在晚第四纪以来仍有活动。尤其是近年来, 对F₅断裂的几何展布、活动时代和活动性质有了进一步认识(张鹏等, 2015; 许汉刚等, 2016; 曹筠等, 2018), 发现其在全新世仍有活动。同时, 对于F₅延入安徽境内的最新研究认为, 在安徽淮河附近存在晚更新世— 全新世破裂(郑颖平等, 2014; Shu et al., 2016; 杨源源等, 2017; 姚大全等, 2017)。然而, 郯庐断裂带在安徽境内, 尤其在定远以南为全隐伏段, 对其几何结构和活动性质等开展研究的难度较大, 目前未有关于其活动构造方面的成果报道。本文针对郯庐断裂带西支(F₄)位于合肥盆地的隐伏段, 通过人工地震反射、钻孔联合剖面的方法获得该隐伏断裂的几何展布、活动性质、活动特征等重要的活动构造学定量参数, 以期为更系统全面地讨论郯庐断裂带的破裂分段提供依据, 同时为区域地震危险性评价和城市规划提供重要的科学依据。

1 郯庐断裂合肥盆地段概况

郯庐断裂合肥盆地段主要由4支断裂构成, 自东向西分别为藕塘-清水涧断裂、池河-西山驿断裂、桑涧子-广寒桥断裂和乌云山-合肥断裂(图 1中的F₁— F₄)。据安徽省地质志(安徽省地质矿产局, 1987)记载, 乌云山-合肥断裂自五河县向S, 经合肥市、舒城县, 消失于大别山区的七里河一带, 长约350km, 倾向SEE, 倾角70° ~80° , 主要发育在五河群中, 基岩出露区可见沿线地层揉皱、岩石破碎并糜棱岩化。在遥感影像上, 断裂北段及南段出露较好, 在合肥盆地中呈隐伏状(图1)。然而其南延至合肥盆地中的活动特征等尚不明确, 尤其是西支断层在合肥盆地内均呈隐伏状, 开展研究的难度大, 难以进行直观有效的地表调查工作。而精细厘定城市内隐伏断裂的分布、活动性质和最新活动时代, 对研究郯庐断裂南段的破裂习性和分段特征以及城市抗震设防工作等均具有十分重要的意义。本文采用浅层地震和钻探联合地质剖面探测相结合的方法, 对郯庐断裂带的西分支断层— — 乌云山-合肥断裂开展深入研究工作, 获得其在合肥盆地内的展布特征、最新活动时代、活动性质等, 为综合评价郯庐断裂带在合肥盆地中的地震危险性提供依据。

	Figure Option View Download New Window

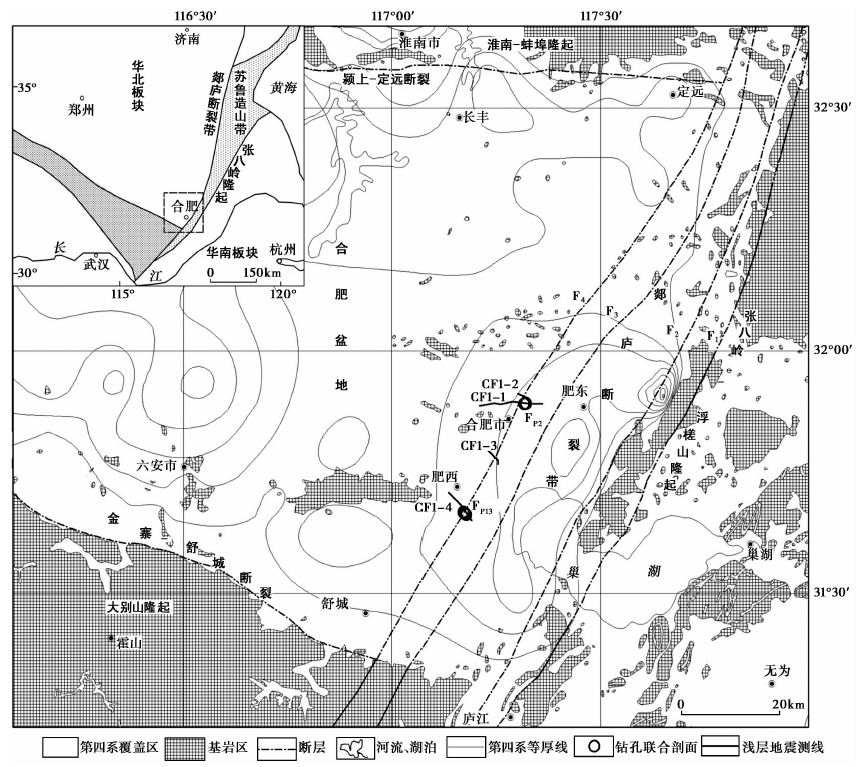

	图 1 郯庐断裂带分支断层在合肥盆地中的展布略图 F₁藕塘-清水涧断裂; F₂池河-西山驿断裂; F₃桑涧子-广寒桥断裂; F₄乌云山-合肥断裂Fig. 1 The distribution of the subsidiary faults of Tanlu fault zone in Hefei Basin.

2 浅层地震探测

2.1 数据采集

为查明第四系覆盖区隐伏断裂的位置, 进行了浅层地震反射勘探工作, 跨乌云山-合肥断裂共布设了4条测线, 由北向南分别标记为CF1-2、 CF1-1、 CF1-3和CF1-4(图1)。地震数据使用德国DMT公司生产的SUMMIT数字地震仪进行采集, 采样长度为1s, 采样间隔为0.5ms。地震波激发源采用美国M18/612型可控震源, 扫描频带为30~200Hz, 扫描长度为8s, 使用4个固有频率为60Hz的检波器串接收地震波。选取观测系统参数时, 依据现场试验结果, 最终采用道间距2m、炮间距10m、 160道接收、覆盖次数16次的观测系统。

2.2 探测结果

CF1-2测线长3.588km(图1)。在测线的反射波时间剖面图中可识别出4组反射波组, 自上而下分别为第四系底界的反射界面T_Q和基岩(白垩纪地层)内部的反射界面T₁、 T₂及T₃(图2)。

	Figure Option View Download New Window

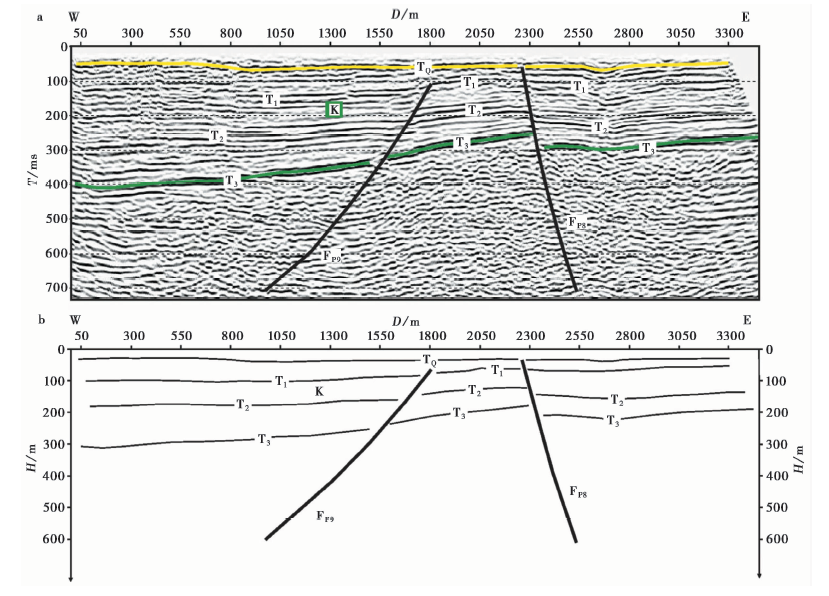

	图 2 CF1-2测线的反射波时间剖面(a)和深度剖面(b)Fig. 2 The time-section(a) and depth-section(b) of reflection waves of line CF1-2.

在测线桩号2 264m附近, T₁、 T₂及T₃反射同相轴存在扭曲和错断现象, 根据反射波组特征和断层判别依据, 在此解释1个断点, 在剖面图中用F_P8 标出(图2), 是1条向E倾的正断层, 其可分辨的上断点埋深约35m, 该深度处垂直断距不大, 为2~3m, 向上切割第四系底界T_Q。在测线桩号1 808m附近, T₁、 T₂及T₃反射同相轴存在扭曲和错断现象, 根据反射波组特征和断层判别依据, 在此解释1个断点, 在剖面图中用F_P9 标出(图2), 是1条向W倾的正断层, 其可分辨的上断点埋深约65m, 该深度处的垂直断距达5~7m, 未切割第四系底界。

CF1-1测线长14km。图 3为该测线的反射波时间剖面图, 通过该剖面可识别出2组反射波组, 自上而下分别为第四系底界的反射界面T_Q和基岩(早白垩纪地层)反射界面T₃。

	Figure Option View Download New Window

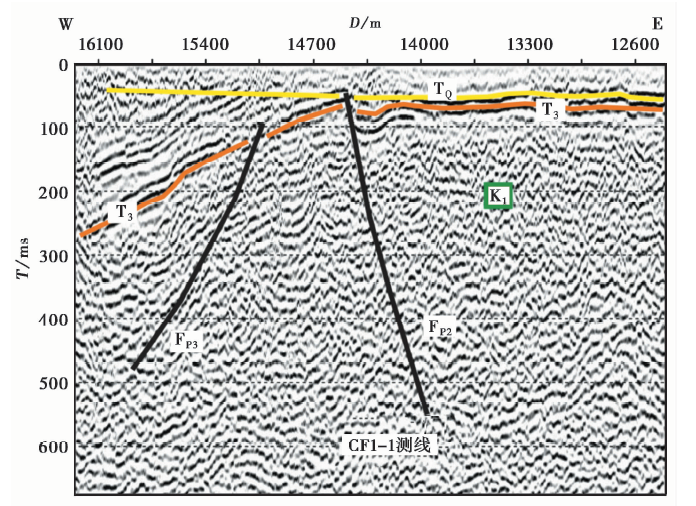

	图 3 CF1-1测线的反射波时间剖面Fig. 3 The time-section of reflection waves of line CF1-1.

在测线桩号14 478m附近, T₃反射同相轴存在扭曲和错断现象, 根据反射波组特征和断层判别依据, 在此解释1个断点, 在剖面图中用F_P2 标出(图3), 是1条向E倾的正断层, 其可分辨的上断点埋深约28m, 该深度处的垂直断距最大约3m, 向上切割第四系底界T_Q。在测线桩号15 022m附近解释出另1个断点F_P3, 是1条向W倾的正断层, 其可分辨的上断点埋深约60m, 该深度处的垂直断距为4~6m, 向上未切割第四系。

CF1-3测线长4.478km。图 4为该测线的反射波时间剖面图, 从图中可识别出2组反射界面, 为第四系底界T_Q和基岩反射界面(古近系)T₁。

	Figure Option View Download New Window
	图 4 CF1-3测线的反射波时间剖面(a)和深度剖面(b)Fig. 4 The time-section(a) and depth-section(b) of reflection waves of line CF1-3.

在测线桩号1 590m附近, T₁反射同相轴存在扭曲和错断现象, 根据反射波组特征和断层判别依据, 在此解释1个断点, 在剖面图中用F_P10 标出(图4), 是1条向SE倾的逆断层, 其可分辨的上断点埋深42m, 该深度的垂直断距为3~5m, 向上未切割第四系。

CF1-4测线长10.578km。图 5为该测线的反射波时间剖面图, 从图中可识别出4组反射界面, 为第四系底界T_Q和基岩反射界面(白垩系)T₁、 T₂及T₃。

	Figure Option View Download New Window

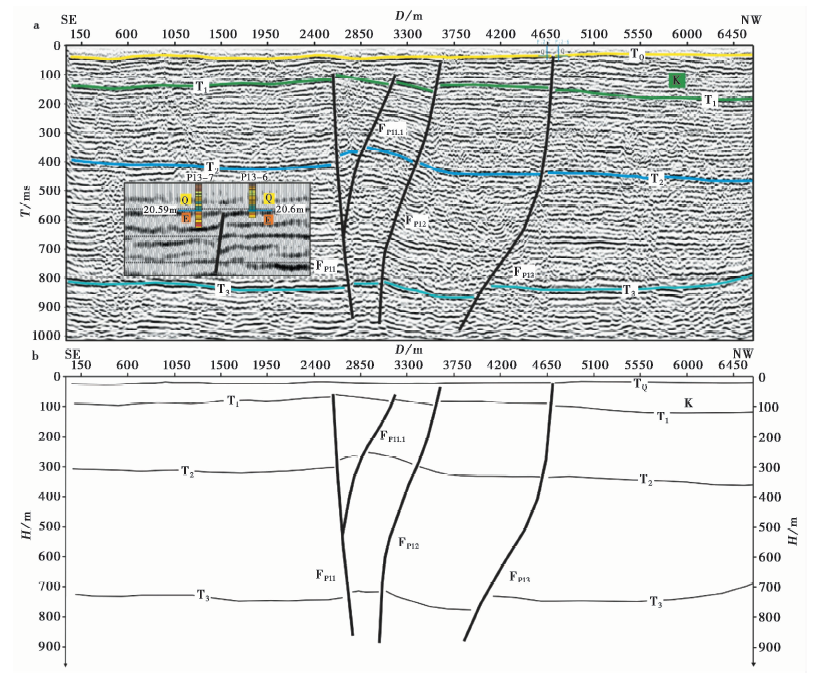

	图 5 CF1-4测线的反射波时间剖面(a)和深度剖面(b)Fig. 5 The time-section(a) and depth-section(b) of reflection waves of line CF1-4.

在测线桩号4 700m附近, T₁及T₃的反射同相轴存在扭曲和错断现象, 根据反射波组特征和断层判别依据, 在此解释1个断点, 在剖面图中用F_P13 标出(图5), 且在T₂界面附近出现反转, 下部表现为正断性质, 上部表现为逆断性质, 倾向SE, 上断点埋深约21m, 在该深度其垂直断距很小, 不易分辨, 向上切割第四系。在测线桩号3 615m附近解释另1个断点F_P12, 为倾向SE的正断层, 上断点埋深为29m, 该深度处其垂直断距为4~6m, 向上至第四系底界。在测线桩号2 577m附近解释1个断点F_P11, 为倾向NW的逆断层, 上断点埋深约60m, 在该深度其垂直断距为4~6m; 在测线桩号3 178m处解释断点F_P11.1, 为F_P11的次级断裂, 是倾向SE的正断层, 上断点埋深约60m, 在该深度其垂直断距为4~6m, 断点均在基岩内部。

3 钻探联合地质剖面探测

3.1 钻孔布置

为进一步确定乌云山-合肥断裂的上断点埋深及活动时代, 在浅层地震勘探结果的基础上, 跨CF1-1和CF1-4测线的断点位置分别在瑶海公园南门和合铜路布设了7个和11个钻孔。本次工作中, 最大钻孔间距49m, 最小钻孔间距0.5m。

3.2 瑶海公园南门钻孔联合剖面

该联合剖面以150° 走向布置于瑶海公园南门北西侧湖边, 横跨浅震测线CF1-1解释出的F_P2 断点。从北西向南东共布置了7个钻孔, 孔深34.46~40.71m, 孔间距1~14m, 共对3个¹⁴C样品、 9个OSL样品及7个ESR样品进行测年(图6)。

	Figure Option View Download New Window

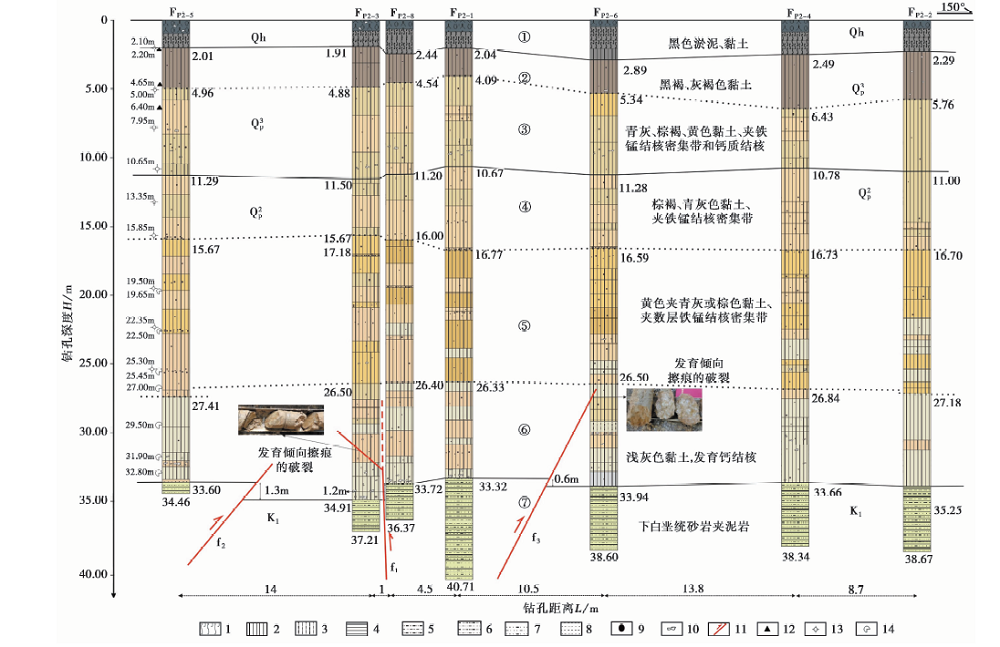

	图 6 瑶海公园南门钻孔联合地质剖面 1 淤泥; 2 黏土; 3 粉砂质黏土; 4 泥岩; 5 粉砂质泥岩; 6 泥质粉砂岩; 7 泥质细砂岩; 8 粉砂岩; 9 铁锰结核; 10 钙质结核; 11 断层; 12 ¹⁴C样品; 13 光释光样品; 14 电子自旋共振测年样品Fig. 6 The composite drilling geological section at south gate of Yaohai Park.

3.2.1 钻孔揭示的地层特征

7个钻孔揭示的地层层序基本相同, 根据各钻孔岩心特征可分为7层, 自上而下描述为: 全新统(Qh)①为黑色淤泥、灰褐色黏土, 含零星铁锰结核, 埋深1.91~2.89m。晚更新统( $Q_{P}^{3}$ )分为2层, 上部②为黑褐、灰褐色黏土, 埋深4.09~6.43m; 下部③为青灰、棕褐、黄色黏土, 夹铁锰结核密集带和钙质结核, 埋深10.67~11.29m。中更新统( $Q_{P}^{2}$ )分为3层, 上部④为棕褐、青灰色黏土, 夹铁锰结核密集带, 埋深15.67~16.77m; 中部⑤为黄色夹青灰或棕色黏土, 夹数层铁锰结核密集带, 埋深26.33~27.41m; 下部⑥为浅灰色黏土, 发育钙结核, 埋深33.32~34.91m。下白垩系(K₁)⑦为红褐、棕色— 浅黄色近水平条纹泥质粉砂— 细砂岩。

3.2.2 标志层断错分析及钻孔地层剖面年代学分析

由瑶海公园南门钻孔联合剖面(图6)可见, 富含铁锰结核密集带的更新世地层可作为标志层, 且在更新世地层中段⑤内至少可以分辨出3层铁锰结核层, 埋深分别约17m、 20m和26m, 均未被断错。

钻孔F_P2-3和F_P2-8间仅距1m, 但其基岩⑦的顶面落差达1.2m, 且钻孔F_P2-3深32m处, 在层⑥黏土中还钻遇2个断面, 倾向SE, 倾角40° ~45° , 其上擦痕明显, 反映出逆冲的运动性质, 判定钻孔F_P2-3和F_P2-8间发育断层f₁, 该断层可能继续向上延伸, 终止于灰色黏土层⑥与黄色、棕色黏土层⑤之间的分界线以下; 钻孔F_P2-5和F_P2-3间距14m, 2钻孔的基岩顶面落差为1.3m, 推测其间可能发育断层f₂; 钻孔F_P2-1和F_P2-6间距10.5m, 2钻孔的基岩顶面落差为0.6m, 且在钻孔F_P2-6深26.5m处发现断面, 判定钻孔F_P2-1和F_P2-6间发育断层f₃, 因断层两侧基岩顶面落差仅0.6m, 推测f₃断层应终止于深约26m的棕红色黏土中。

根据F_P2-5钻孔系列样品测试结果(表1和表2), 深26m以下的黏土层的堆积年龄是(324± 24)ka。深26m以上(接近26m)的黏土层的堆积年龄是(158.29± 19.27)ka。因此可以推测f₁、 f₂和f₃的最新活动年代在(324± 24)ka BP之后、 (158.29± 19.27)ka BP之前的中更新世晚期。

表1 联合钻孔地层剖面¹⁴C测年结果 Table1 ¹⁴C dating of the strata of the composite drilling section

表2 联合钻孔地层剖面光释光(OSL)测年及电子自旋共振(ESR)测年结果 Table2 OSL and ESR dating of the strata of the composite drilling section

名称	样品编号	测年方法	取样深度 /m	U /ug· g	Th /ug· g	K₂O /%	含水量 /%	古剂量 /Gy	年剂量 /Gy· ka^-1	年龄 /ka
F_P2 联合剖面	F_P2-52.10	OSL	2.10	2.33	13.4	1.62	17.44	69.65± 6.46	3.56	19.58± 2.67
	F_P2-55.00	OSL	5.00	2.54	12.7	1.18	16.54	221.26± 22.87	3.15	70.27± 10.11
	F_P2-57.95	OSL	7.95	2.11	12.5	1.48	14.91	343.58± 32.67	3.29	104.47± 14.42
	F_P2-510.65	OSL	10.65	2.35	13.2	1.45	16.64	362.93± 8.37	3.34	108.81± 11.81
	F_P2-513.35	OSL	13.35	2.86	14.6	1.47	16.49	497.57± 44.70	3.58	138.95± 18.68
	F_P2-515.85	OSL	15.85	3.33	13.6	0.78	14.41	562.71± 105.34	3.14	179.25± 38.04
	F_P2-519.50	OSL	19.50	2.93	13.6	0.98	16.38	665.05± 52.39	3.15	211.46± 26.92
	F_P2-522.35	OSL	22.35	2.61	13.4	1.25	16.36	552.42± 72.71	3.24	170.27± 28.15
	F_P2-525.30	OSL	25.30	2.69	12.5	1.43	18.00	508.23± 35.28	3.21	158.29± 19.27
	F_P2-519.65	ESR	19.65	3.84	17.0	1.44	16.22	1 873± 164	3.08	608± 53
	F_P2-522.50	ESR	22.50	3.00	14.2	1.69	15.91	874± 161	2.95	296± 55
	F_P2-525.45	ESR	25.45	3.17	14.8	1.96	17.05	1 026± 204	3.17	324± 64
	F_P2-527.00	ESR	27.00	2.81	14.3	1.40	16.54	4 287± 1 238	2.67	1 606± 461
	F_P2-529.50	ESR	29.50	2.71	14.4	1.33	15.49	1 074± 344	2.64	407± 130
	F_P2-531.90	ESR	31.90	1.66	8.9	1.28	12.46	1 331± 302	2.14	622± 141
	F_P2-532.80	ESR	32.80	2.01	9.84	1.12	12.14	1 301± 230	2.15	605± 107
F_P13 联合剖面	F_P13-71.70	OSL	1.70	3.28	13.30	1.54	13.12		0.16	57.8± 2.81
	F_P13-73.50	OSL	3.50	1.72	8.84	1.32	12.76		0.13	75.42± 5.98
	F_P13-716.65	OSL	16.65	3.00	14.40	0.97	11.69		0.04	212.92± 11.07
	F_P13-719.15	OSL	19.15	1.66	11.20	0.96	12.11		0.03	265.67± 19.51
	F_P13-714.00	ESR	14.00	2.25	12.2	1.37	13.58	1 991± 424	2.50	796± 170
	F_P13-716.80	ESR	16.80	2.65	13.3	1.14	13.50	1 391± 175	2.47	563± 71
	F_P13-115.05	OSL	5.05	2.24	11.00	1.41	13.39		0.10	99.92± 9.87
	F_P13-117.45	OSL	7.45	2.05	10.50	1.29	16.59		0.08	177.45± 12.97
	F_P13-119.45	OSL	9.45	2.10	11.90	1.03	13.25		0.06	193.81± 15.99
	F_P13-1112.55	OSL	12.55	1.77	9.03	1.37	12.75		0.05	237.62± 21.39
	F_P13-1115.15	OSL	15.15	2.53	11.70	1.25	8.86		0.04	192.12± 18.77
	F_P13-1116.15	OSL	16.15	1.81	12.20	1.10	11.44		0.04	212.49± 21.58
	F_P13-1117.25	OSL	17.25	1.75	9.57	1.11	9.33		0.03	253.68± 19.61
	F_P13-1119.50	OSL	19.50	1.56	9.42	0.91	11.02		0.03	270.35± 25.69
	F_P13-1120.50	OSL	20.50	1.54	10.40	0.36	14.80		0.03	402.72± 57.46

注 ESR测试单位为中国地震局地质研究所地震动力学国家重点实验室; F_P2联合剖面中OSL测试单位为中国地震局地壳应力研究所地壳动力学重点实验室; F_P13联合剖面中OSL测试单位为中国科学技术大学科技考古实验室。

表2 联合钻孔地层剖面光释光(OSL)测年及电子自旋共振(ESR)测年结果 Table2 OSL and ESR dating of the strata of the composite drilling section

3. 3 合铜路钻孔联合剖面

该联合剖面为SE走向, 布置于合铜路两侧的金岗村苗圃地, 横跨浅震测线CF1-4解释出的F_P13断点。从北西向南东共布置了11个钻孔, 孔深21.34~34.38m, 孔间距0.5~49m, 共完成13个OSL样品及2个ESR样品的测年工作(图7)。

	Figure Option View Download New Window

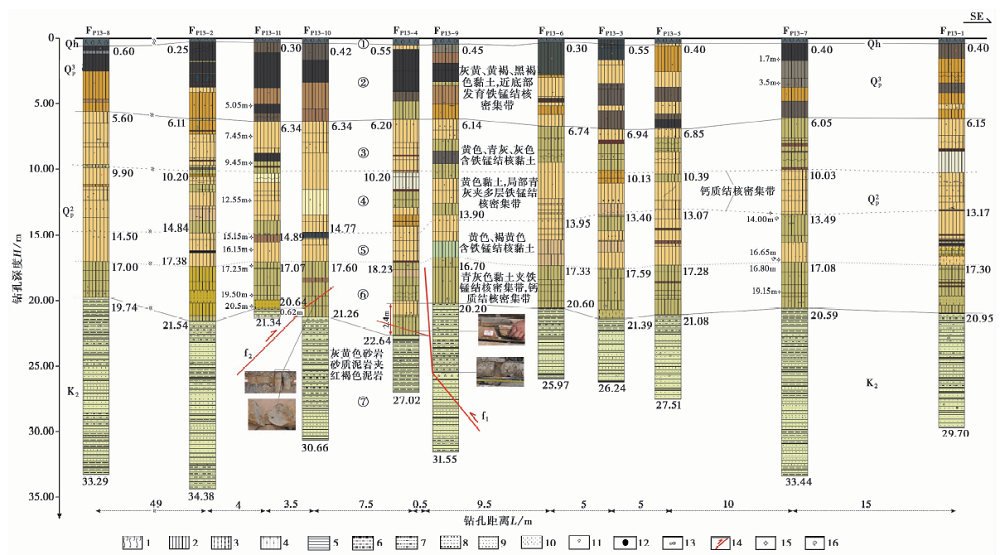

	图 7 合铜路钻孔联合地质剖面 1 淤泥; 2 黏土; 3 粉砂质黏土; 4 细砂质黏土; 5 泥岩; 6 粉砂质泥岩; 7 泥质粉砂岩; 8 粉砂岩; 9 细砂岩; 10 中粗砂岩; 11 砾石; 12 铁锰结核; 13 钙质结核; 14 断层; 15 光释光样品; 16 电子自旋共振测年样品Fig. 7 The composite drilling geological section at Hetong road.

3.3.1 钻孔揭示的地层特征

11个钻孔揭示的地层层序基本相同, 根据各钻孔的岩心特征可分为7层, 自上而下描述为: 全新统(Qh)①为灰黑色、灰褐色黏土质耕作土, 埋深0.25~0.4m。晚更新统( $Q_{P}^{3}$ )②为灰黄、黄褐、黑褐色黏土, 底部发育铁锰结核密集带, 埋深5.60~6.94m。中更新统( $Q_{P}^{2}$ )分为4层, 上部层③为青灰-黄色斜纹状黏土, 富含铁锰结核, 埋深9.9~10.39m; 中上部层④为青灰-黄色斑纹状黏土, 含铁锰氧化物, 埋深13.07~14.89m; 中下部层⑤为黄色黏土, 夹铁锰结核密集带, 埋深16.70~18.23m; 下部层⑥为青灰色黏土夹铁锰结核, 埋深19.74~22.64m。上白垩系(K₂)⑦为灰黄色砂岩、砂质泥岩夹红褐色泥岩。

3.3.2 标志层断错分析及钻孔地层剖面年代学分析

由合铜路钻孔联合剖面(图7)可见, 富含铁锰结核密集带的更新世地层可作为标志层, 且在中更新世地层③、 ④、 ⑤和⑥内至少可以分辨出3层铁锰结核层, 埋深分别约10m、 14m和17m, 均未被断错。

钻孔F_P13-4和F_P13-9相距仅0.5m, 但其基岩顶面⑦的落差达2.4m, 且在F_P13-9钻孔25.5m深处的白垩纪砂岩中钻遇断层破碎带, 判定在F_P13-4和2钻孔间发育断层f₁, 在钻孔F_P13-4深约22.3m处的黄土中钻遇断层, 断面倾角30° ~35° , 可能是f₁向NW逆冲时发育的1条分支断层; 钻孔F_P13-11和F_P13-10相距3.5m, 但其基岩顶面⑦的落差达0.6m, 且在钻孔F_P13-10深19.4~20m处的黄土中钻遇2个断面, 倾角为40° ~45° , 推测在钻孔F_P13-11和F_P13-10之间发育1条逆冲断层f₂。

由图 7可见, f₁向上延伸且应位于F_P13-4和F_P13-9钻孔之间, 但2个钻孔中层⑥的顶面埋深皆为16.7m, 不存在落差, 因此断层没有错断层⑥的顶面。 f₂向上延伸且应位于F_P13-10和F_P13-4之间, 2个钻孔中层⑥的顶面埋深分别为17.6m和16.7m, 而该断层是逆断层, 故该断层也没有错断层⑥的顶面。

F_P13-7和2个钻孔的系列样品测试结果(表2)反映, 层⑥顶面以下样品的最新年龄为(265.67± 19.51)~(253.68± 19.61)ka, 顶面以上样品的最老年龄为(212.92± 19.51)~(212.49± 21.58)ka。由前述分析可知, 2条断层错断了层⑥, 但没有影响层⑤。因此f₁、 f₂ 2条断层的最新活动应在(265.67± 19.51)~(253.68± 19.61)ka BP之后、 (212.92± 19.51)~(212.49± 21.58)ka BP之前的中更新世晚期。

4 结论及讨论

通过研究发现, 合肥盆地隐伏区郯庐断裂带的西支断层— — 乌云山-合肥断裂在钻探联合地质剖面上为逆断层, 在浅层地震剖面上为走滑断层; 经地层分析和年代测试工作可知, 乌云山-合肥断裂的最新活动时代在中更新世晚期, 上断点埋深最浅为17m, 最深达26m, 最大垂直错距达2.4m。

浅层地震探测揭示, 乌云山-合肥断裂切割白垩纪以来的地层, 在剖面中或表现为陡倾的多支或单支断裂, 或表现为陡倾的主干断裂与倾角稍缓的次级断裂的组合。从反射层位的断错来看, 有的表现为正断性质, 有的表现为逆断性质, 有的下部表现为正断性质而上部又反映出逆冲性质。而联合钻孔剖面揭示断层为逆冲性质, 反映了郯庐断裂带经历了多期构造运动的叠加, 也可能是走滑运动在倾向滑动上不均一性的表现。

本研究证实郯庐断裂带穿切合肥盆地, 且第四纪以来仍有活动, 但活动强度不及安徽北段淮河附近, 活动性具有明显的分段特征, 揭示了郯庐断裂带作为中国东部最有影响的断裂系具有复杂性的一面。该断裂向S延入大别山一带的活动特征有待进一步研究工作。

致谢本文得到中国地震局地质研究所宋方敏研究员的悉心指导和帮助, 在此表示衷心感谢!
