MULTI-SCALE ANALYSIS OF THE GRAVITY FIELD IN THE SOUTHEASTERN QINGHAI-TIBET PLATEAU AND ITS TECTONIC IMPLICATIONS

FANG Dong1)(), HU Min-zhang1,2),*(), HAO Hong-tao1)

  1. 1) Key Laboratory of Earthquake Geodesy, Institute of Seismology, China Earthquake Administration, Wuhan 430071, China
    2) Institute of Disaster Prevention, Langfang, Hebei 065201, China
  • Received:2020-08-17 Revised:2020-11-29 Online:2021-10-20 Published:2021-12-06
  • Contact: HU Min-zhang

青藏高原东南缘重力场多尺度分析及其构造含义

方东1)(), 胡敏章1,2),*(), 郝洪涛1)

  1. 1)中国地震局地震研究所, 地震大地测量重点实验室, 武汉 430071
    2)防灾科技学院, 廊坊 065201
  • 通讯作者: 胡敏章
  • 作者简介:方东, 男, 1995年生, 2017年于安徽理工大学获测绘工程专业学士学位, 现为中国地震局地震研究所大地测量学与测量工程专业在读硕士研究生, 主要从事重力场及其变化方面的研究, E-mail: dong_fang1995@163.com
  • 基金资助:
    国家自然科学基金(41974021);中国地震局地震科技星火计划项目(XH20039)

Abstract:

Since the Cenozoic, the Qinghai-Tibet plateau is uplifting sharply due to the India-Eurasian violent collision. Its crust has thickened accompanied with north-south shortening and east-west extrusion. The eastward-moving material beneath the southeastern margin of Qinghai-Tibet plateau is stopped by hard blocks such as Alax, Ordos and South China block. Under the interaction, a complex structural belt of north-south direction is formed, called the North-south structural belt. And it is also known as the“North-South Seismic Belt” because of dense distribution and high intensity of earthquakes. Therefore, studies of the crustal structure and mass movement characteristics have scientific significance to reveal the mechanism of tectonic activity and earthquake incubation beneath the southeastern Qinghai-Tibet plateau. It will help improve capabilities of regional earthquake preparedness and disaster mitigation.

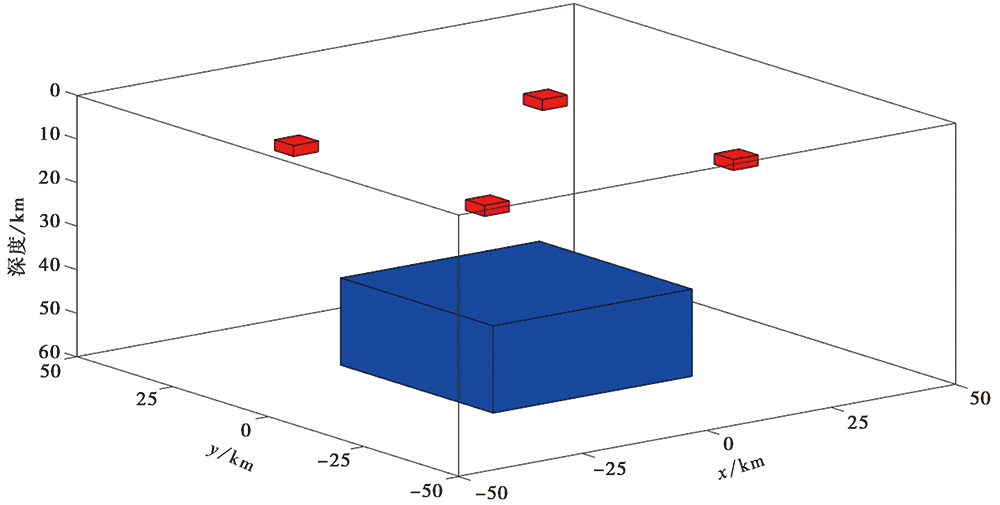

Firstly, the simulation test of simple geological body is carried out to verify the effectiveness of wavelet multi-scale analysis method in gravity field separation and the stability of the application program. When designing a simple geological body model, both the superposition effect of geological bodies at different depths and the decomposition effect of the test model are considered. The approximate field source depth of the separated regional field and local field is calculated by radial logarithmic power spectrum, and the calculation results are consistent with the design depth. It is determined that the wavelet base is “bior3.5” and the decomposition order is 5. The test results show that the “bior3.5” wavelet basis can effectively separate the regional and local anomalies in the geological body of the combined model, and obtain an ideal separation effect.

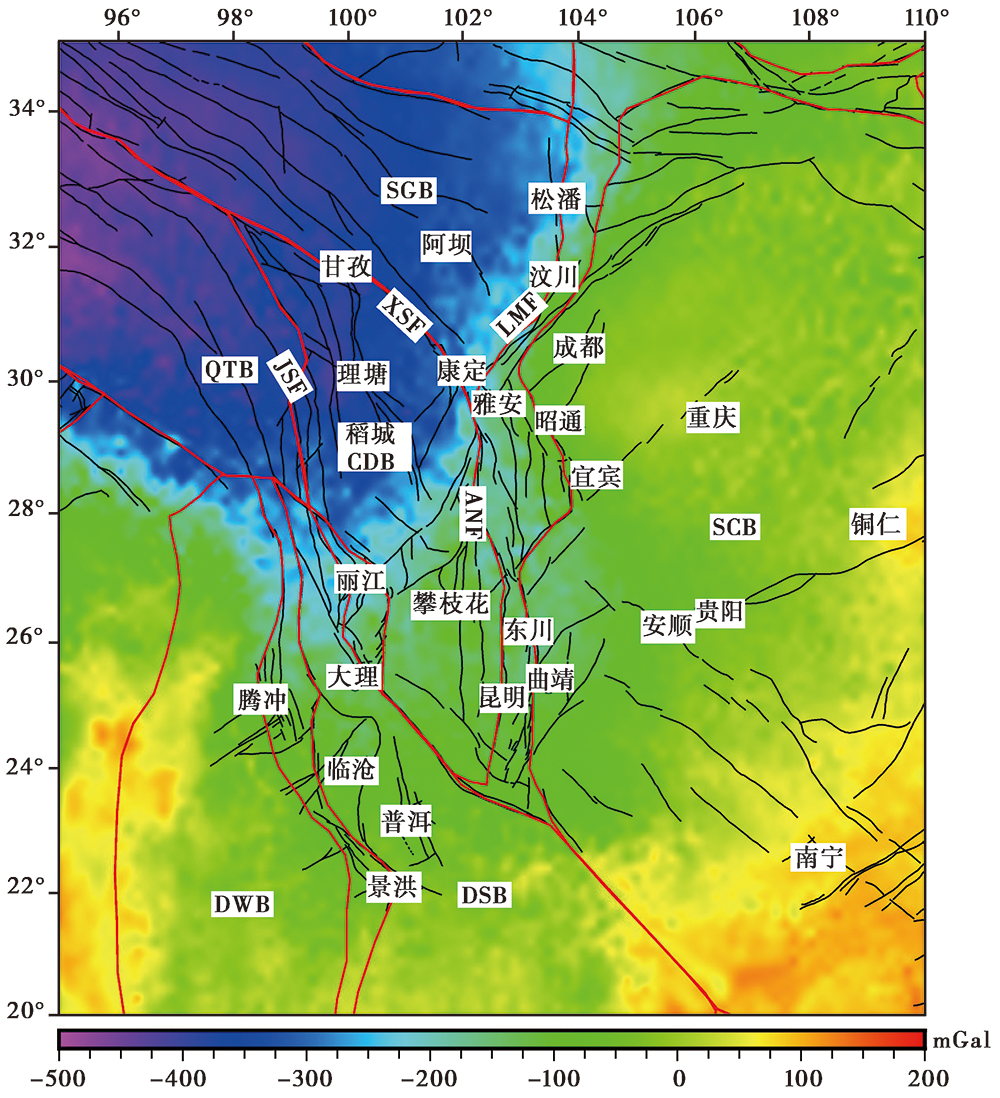

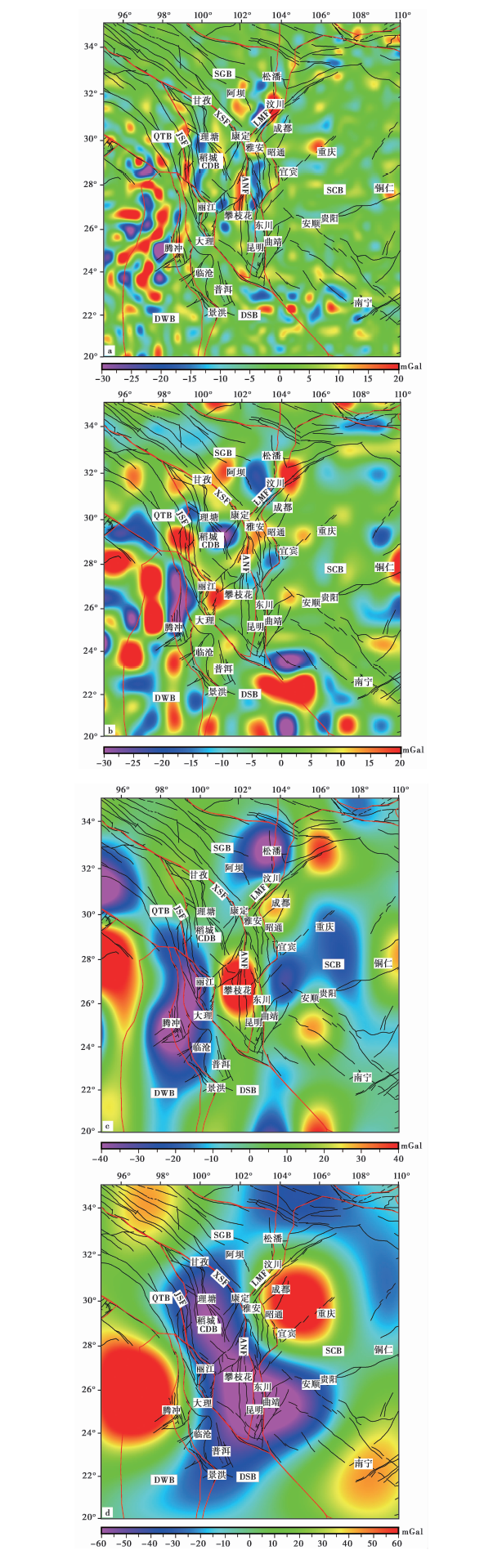

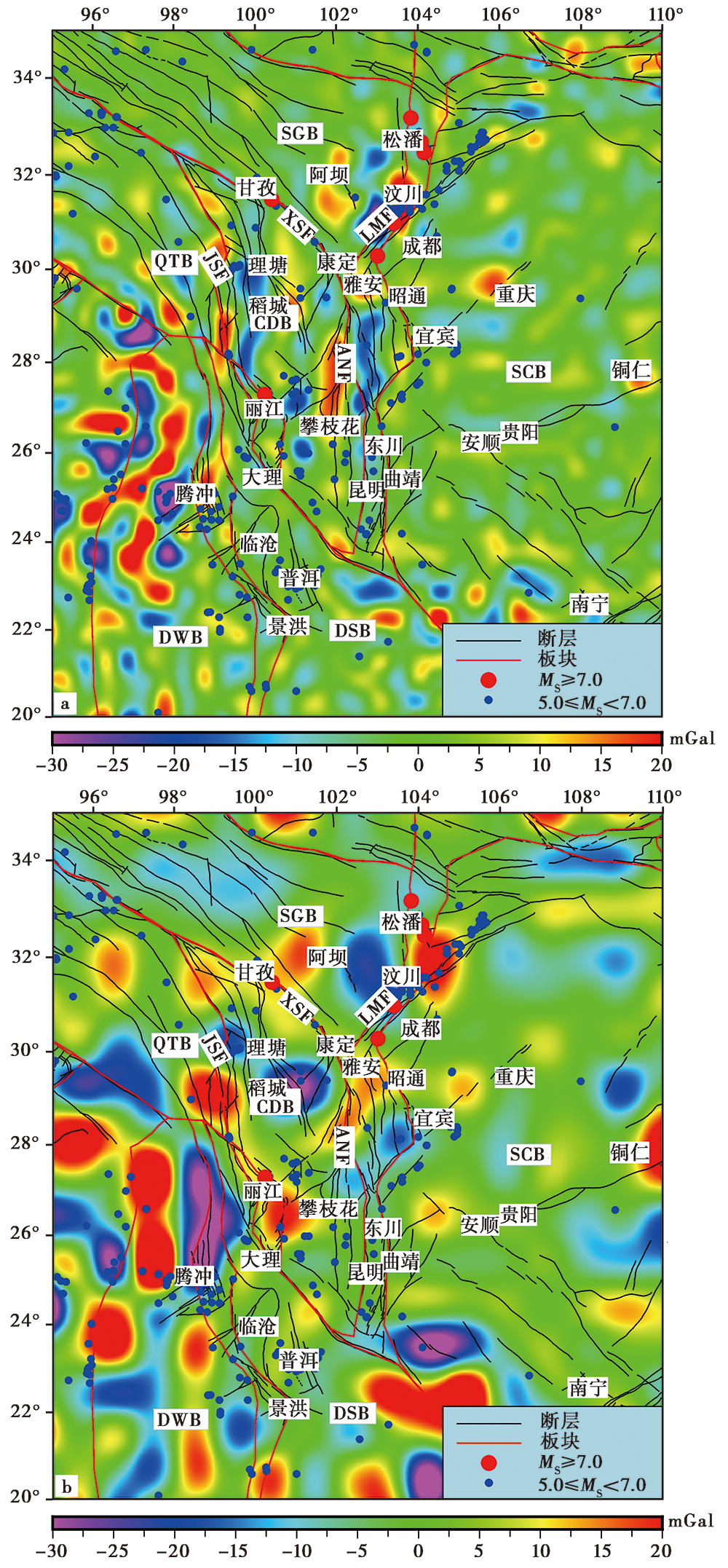

Then, based on the global gravity field model WGM2012 data, the Bouguer gravity anomaly data in the southeastern Qinghai-Tibetan plateau is decomposed in the 5 orders by using multi-scale wavelet analysis, and the radial logarithmic power spectrum is used to analyze the decomposition results, and a subset of the Bouguer gravity anomaly at different depths of this area is obtained. Based on this, this paper discusses the regional crustal structure, mass movement and seismogenic environment. The results show that the small-scale gravity anomaly of the 2nd and 3rd order mainly reflects the deformation information of the middle and upper crust, and the approximate field source depth of spectrum estimation is 3.5km and 12.6km. The second-order wavelet details are mainly distributed in strips with positive and negative alternations, while the third-order wavelet details are mainly displayed in tongue shape and trap shape. Compared with the second-order wavelet, the scale of the third-order details is larger and the range is clearer, but the location areas of the positive and negative anomaly distribution of the two are basically the same. The small-scale gravity anomaly indicates that the strong earthquakes mainly occur in the high gravity gradient zone and the boundary of the active block in this area. A comparative analysis of gravity anomalies at various scales reveals that seismogenic environment is not only controlled by the structure of the upper and middle crustal fault blocks but also related to the changes in the density of the lower crust. The lower crust at the epicenter appears as a low anomaly zone. The low-density, low-velocity, and plasticity of the deep medium conditions of the lower crust may have caused the stress of the lower crust in this area not to accumulate and“escape” to the upper crust easily to trigger strong earthquakes. This dynamic process of interaction between shallow and deep crust may be an important condition for earthquakes in the study area. The variation of Bouguer gravity anomaly in the second-order and third-order detail maps is consistent with the geological structure observed on the surface, making this area one of the areas with the most intense Meso-Cenozoic crustal deformation and seismicity; the meso-scale gravity anomaly of the 4th order mainly reflects the deformation information of the middle and lower crust, and the approximate field source depth of spectrum estimation is 26.2km, showing the existence of a low Bouguer gravity anomaly trap in the Songpan-Garze block. It is consistent with the observation results that there is a thicker low-velocity and low-resistance layer in the crust of Bayan Har block. It may be related to the large thickness of the lithosphere, the higher temperature of the lower crust and the melting of parts of the middle and lower crust at high temperatures. In the Panzhihua area, there is a high gravity anomaly trap, which may be caused by the mass residues in the middle and lower crust by the deep high-density material ascent during the Panxi ancient rift period. As one of the mass eastward migration channels of the Qinghai-Tibet Plateau, part of the materials in the Sanjiang area(Nujiang River, Lancang River and Jinsha River)gushes upward along the fault zone and accumulates in the middle and lower crust, resulting in a low Bouguer gravity anomaly area in the middle and lower crust of the area; the large-scale gravity anomaly of the 5th order mainly reflects the deformation information of the lower crust, and the approximate field source depth of spectrum estimation is 48.8km. It embodies the characteristics of rigid block. Myanmar microplate passes through western Yunnan in the direction of SEE, and the block shows still a high positive gravity anomaly, reflecting that these blocks have high density and strong rigidity and are not likely to fracture when the Indian plate pushes Eurasia northward, which plays a key role in the formation of the eastern Himalayan tectonic syntax. Large-scale gravity anomaly shows a regional negative anomaly in the Chuan-Dian block, which provides indirect evidence about the existence of “lower crustal flow” in the southeastern Qinghai-Tibet Plateau. Clamped by the Sichuan Basin and the Yunnan-Burma block, the flowing direction and accumulation of low-density mass can be clearly revealed. The low-density mass in the lower crust flows in both directions from north or south. A small part of the mass flows to the north through the Xianshuihe fault zone. Most of the mass flows to the south and is blocked by the southern Yunnan block. One flow goes to Panzhihua-Pu’er. One branch flows in the direction of Dongchuan-Qujing, and has a tendency to flow in the direction of Anshun-Guiyang, causing low-density mass to accumulate in the Lijiang-Daocheng-Panzhihua-Dongchuan-Kunming area.

Key words: southeastern Qinghai-Tibet Plateau, multi-scale wavelet analysis, crustal structure, mass movement, seismogenic environment

摘要:

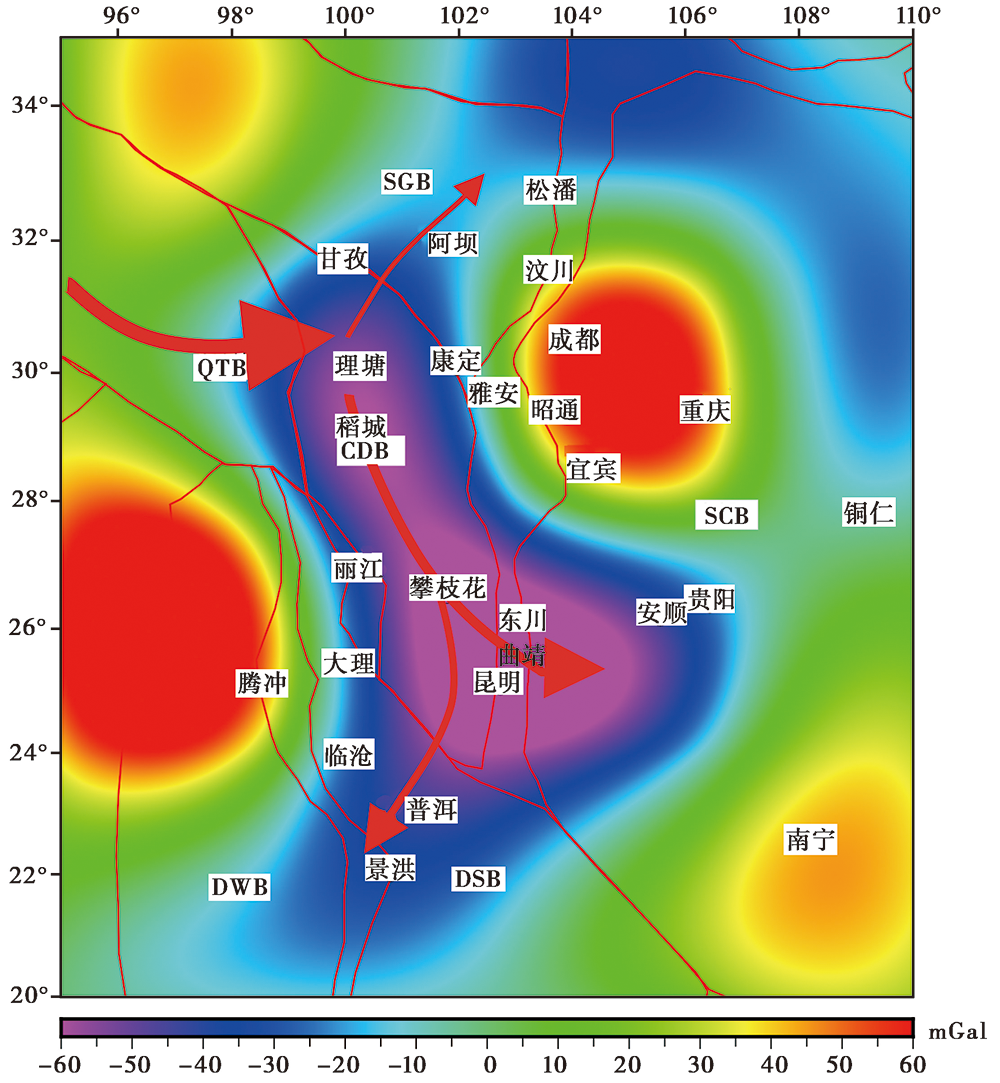

文中利用小波多尺度分析方法对青藏高原东南缘WGM2012布格重力异常进行5阶分解, 得到了该区域不同深度上的布格重力异常子集, 并据此研究了该区域的地壳构造、 物质运动及其孕震环境。结果表明: 2、 3阶小尺度重力异常反映了该地区的强震主要发生在高重力梯级带及活动地块边界上, 对比分析各尺度重力异常, 发现地震孕育不仅受控于中、 上地壳的断裂地块构造, 也与深部地壳的密度变化有关, 这种地壳深、 浅部相互作用的动力学过程可能是川滇地区地震孕育的重要条件; 4阶中尺度重力异常显示松潘-甘孜地块的东南缘存在1个低布格重力异常圈闭, 与巴颜喀拉地块地壳中存在着较厚的低速、 低阻层的观测结果一致, 推测可能与该地块东部岩石圈厚度大、 下地壳温度较高、 中下地壳部分岩体在高温下熔融有关。在攀枝花地区存在1个高布格重力异常圈闭, 推测可能是在攀西古裂谷时期, 深部高密度物质上涌过程中在中下地壳的物质残留所致; 5阶大尺度重力异常显示在川滇菱形块体呈区域性负重力异常, 为青藏高原东南缘 “下地壳流”的存在提供支持证据。

关键词: 青藏高原东南缘, 小波多尺度分析, 地壳构造, 物质运动, 孕震环境
