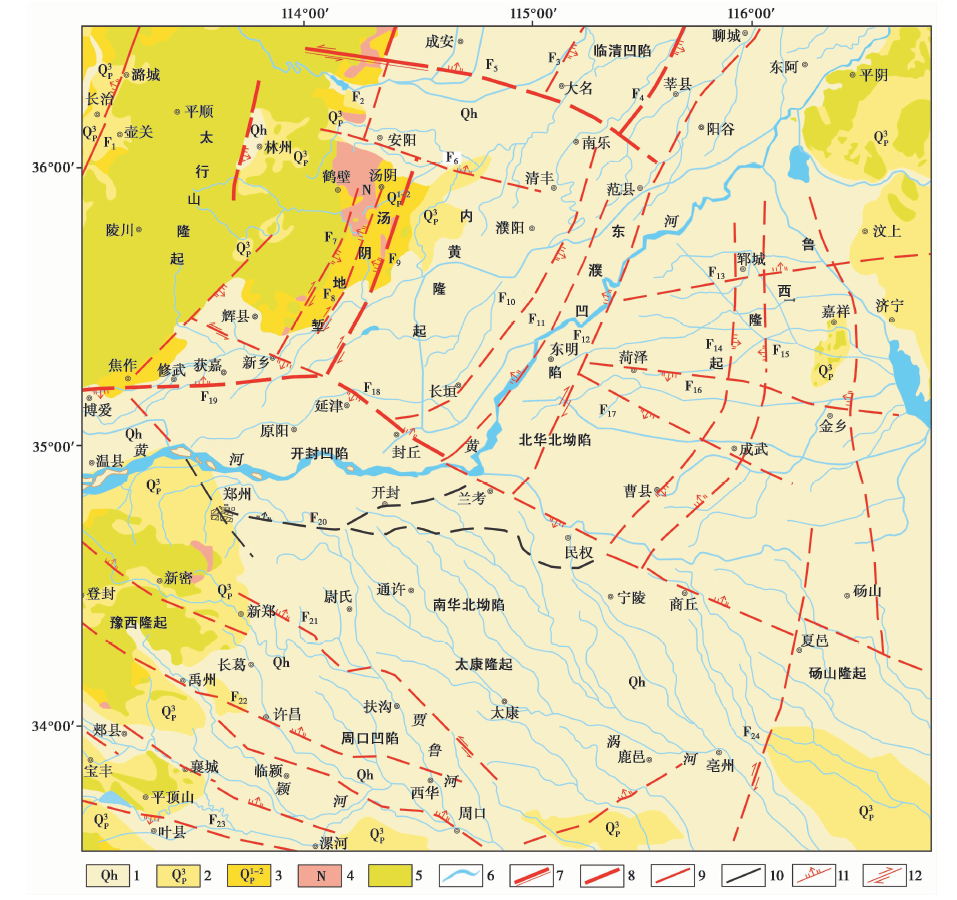

TIAN Yi-ming, YANG Zhuo-xin, WANG Zhi-shuo, SHI Jin-hu, ZHANG Yang, TAN Ya-li, ZHANG Jian-zhi, SONG Wei, JI Tong-yu. A PRELIMINARY STUDY OF THE SHALLOW EXPLORATION AND QUATERNARY ACTIVITIES OF THE FENGQIU SEGMENT OF THE XINXIANG-SHANGQIU FAULT[J]. SEISMOLOGY AND GEOLOGY, 2023, 45(1): 139-152.
田一鸣, 杨卓欣, 王志铄, 石金虎, 张扬, 谭雅丽, 张建志, 宋威, 季通宇. 新乡-商丘断裂封丘段浅部探测和第四纪活动性的初步研究[J]. 地震地质, 2023, 45(1): 139-152.
Add to citation manager EndNote|Ris|BibTeX
URL: https://www.dzdz.ac.cn/EN/10.3969/j.issn.0253-4967.2023.01.008

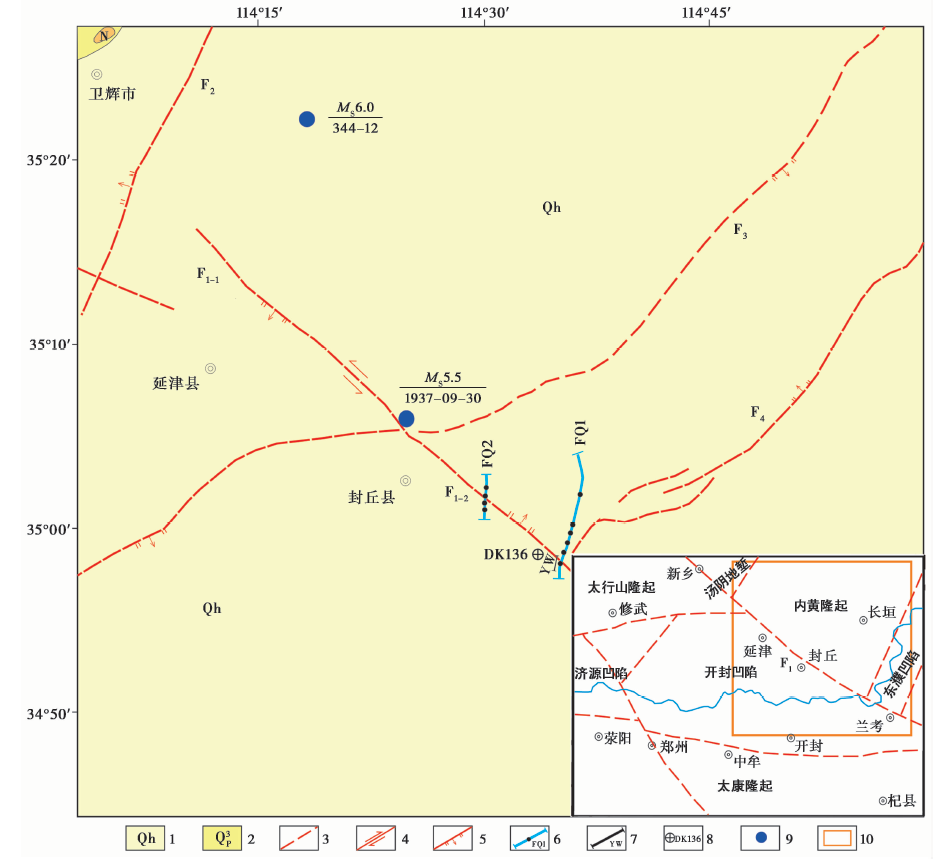

断裂名称 | 断点编号 | 断点位置/m | 视倾向 | 可分辨的上断点埋深/m | 上断点断距/m |
---|---|---|---|---|---|
新乡-商丘断裂封丘段 | FP1 | 11 575 | N | 63 | 2~4 |
FP2 | 10 087 | N | 111 | 3~5 | |
FP3 | 8 956 | N | 189 | 4~6 | |
FP4 | 8 409 | N | 205 | 5~7 | |
FP5 | 7 630 | N | 79 | 2~4 | |
FP6 | 4 604 | N | 196 | 4~6 |

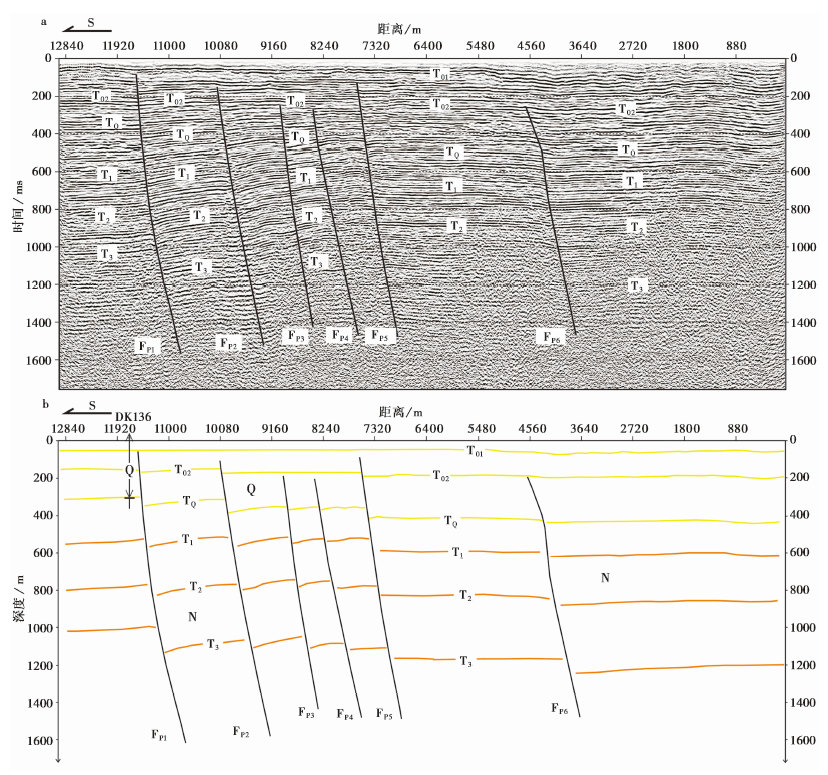

Table1 Parameters of fault breakpoints revealed by seismic reflection profile FQ1
断裂名称 | 断点编号 | 断点位置/m | 视倾向 | 可分辨的上断点埋深/m | 上断点断距/m |
---|---|---|---|---|---|
新乡-商丘断裂封丘段 | FP1 | 11 575 | N | 63 | 2~4 |
FP2 | 10 087 | N | 111 | 3~5 | |
FP3 | 8 956 | N | 189 | 4~6 | |
FP4 | 8 409 | N | 205 | 5~7 | |
FP5 | 7 630 | N | 79 | 2~4 | |
FP6 | 4 604 | N | 196 | 4~6 |
断裂名称 | 断点编号 | 断点位置/m | 视倾向 | 可分辨的上断点埋深/m | 上断点断距/m |
---|---|---|---|---|---|
新乡-商丘断裂封丘段 | FP7 | 6044 | N | 91 | 2~4 |
FP8 | 5254 | N | 113 | 3~5 | |
FP9 | 4836 | N | 153 | 4~6 | |
FP10 | 4092 | N | 216 | 5~7 |

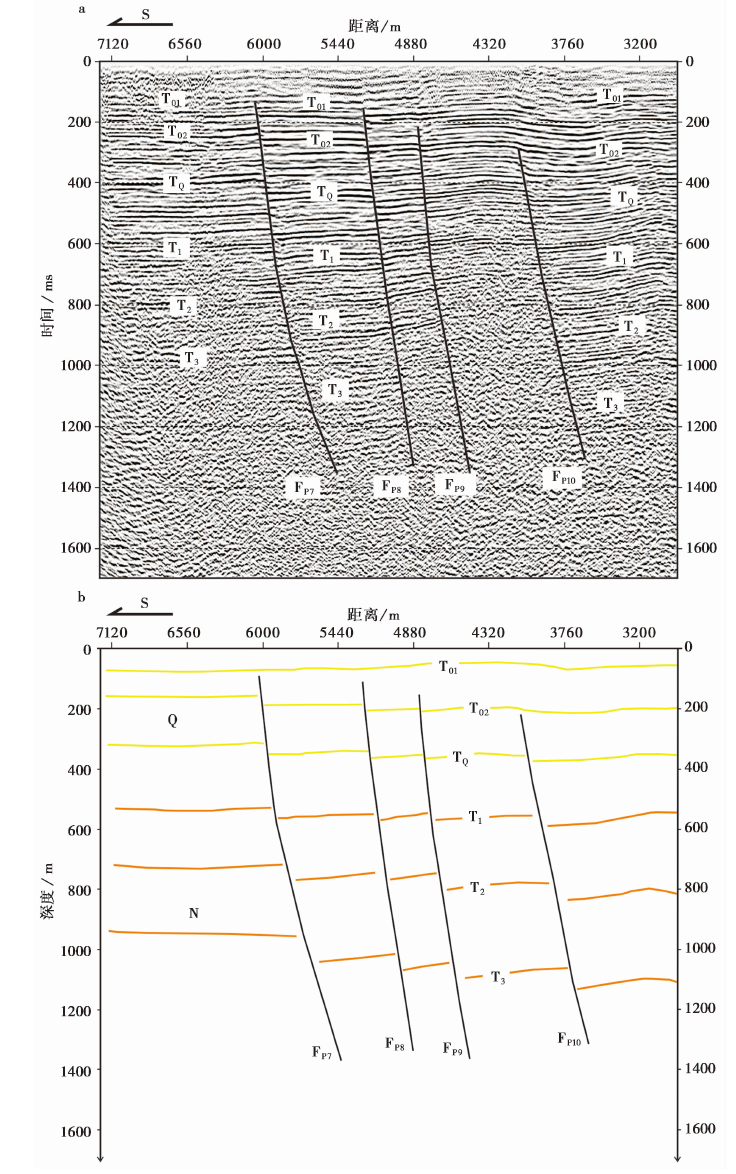

Table2 Parameters of fault breakpoints revealed by seismic reflection profile FQ2
断裂名称 | 断点编号 | 断点位置/m | 视倾向 | 可分辨的上断点埋深/m | 上断点断距/m |
---|---|---|---|---|---|
新乡-商丘断裂封丘段 | FP7 | 6044 | N | 91 | 2~4 |
FP8 | 5254 | N | 113 | 3~5 | |
FP9 | 4836 | N | 153 | 4~6 | |
FP10 | 4092 | N | 216 | 5~7 |
钻孔编号 | 样品埋深/m | 地层/标志层 | 测试方法 | 距今年龄/ka |
---|---|---|---|---|
YW3 | 16.60 | 层⑨ | 14C | 9.23 |
YW7 | 57.10 | 层⑦/B5 | OSL | 68.3±5.0 |
YW5 | 57.80 | 层⑦/B5 | OSL | 63.7±3.4 |
YW7 | 61.20 | 层⑦/B5 | OSL | 84.9±4.7 |
YW7 | 66.70 | 层⑥/B4 | OSL | 103.2±7.5 |
YW7 | 72.40 | 层⑤ | ESR | 329±40 |
YW7 | 93.20 | 层③/B2 | ESR | 452±90 |
YW7 | 107.10 | 层①/B1 | ESR | 687±89 |

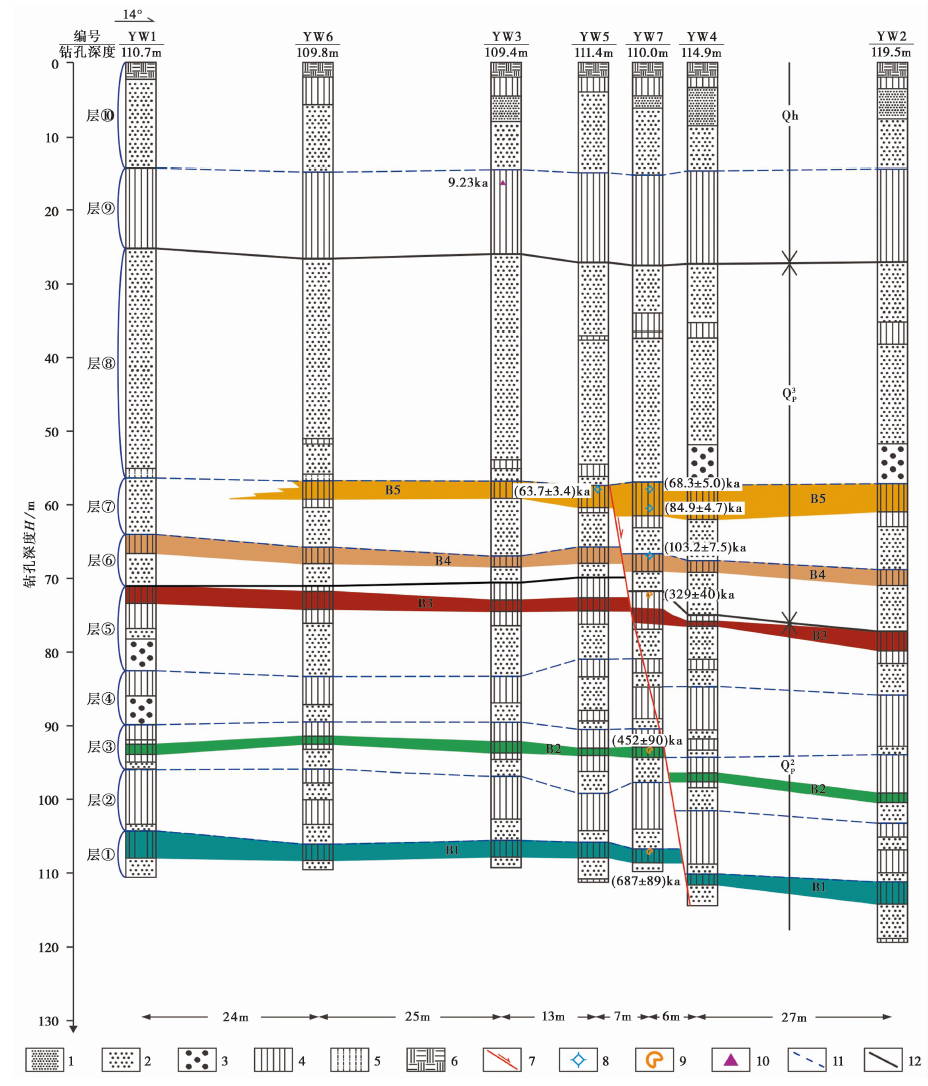

Table3 The dating of samples from Yaowu composite drilling section
钻孔编号 | 样品埋深/m | 地层/标志层 | 测试方法 | 距今年龄/ka |
---|---|---|---|---|
YW3 | 16.60 | 层⑨ | 14C | 9.23 |
YW7 | 57.10 | 层⑦/B5 | OSL | 68.3±5.0 |
YW5 | 57.80 | 层⑦/B5 | OSL | 63.7±3.4 |
YW7 | 61.20 | 层⑦/B5 | OSL | 84.9±4.7 |
YW7 | 66.70 | 层⑥/B4 | OSL | 103.2±7.5 |
YW7 | 72.40 | 层⑤ | ESR | 329±40 |
YW7 | 93.20 | 层③/B2 | ESR | 452±90 |
YW7 | 107.10 | 层①/B1 | ESR | 687±89 |
