PRELIMINARY STUDY ON FAULTED LANDFORMS AND AGES OF RECENT STRONG EARTHQUAKE ACTIVITY ON THE KARAKORUM FAULT IN NGARI, TIBET

doi:10.3969/j.issn.0253-4967.2022.04.007

Abstract

Abstract:

The Karakoram Fault is located in the west of the Qinghai-Tibet Plateau and crosses Kashmir, Xinjiang and Tibet in China. It is a large normal dextral strike-slip fault in the middle of the Asian continent. As a boundary fault dividing the Qinghai-Tibet Plateau and the Pamir Plateau-Karakoram Mountains, the Karakoram Fault plays a role in accommodating the collision deformation between the Indian plate and the Eurasian plate and in the tectonic evolution of the western Qinghai-Tibet Plateau. The fault trace in Ngari area is clear and the faulted landforms are obvious, which show strong activity characteristics in late Quaternary. As a large active fault, only one earthquake of magnitude 7 has been recorded on the Karakoram Fault since the recorded history, namely, the Tashkurgan earthquake of 1895 at its north end. There are no records of strong earthquakes of magnitude≥7 along the rest of the fault, and no paleo-seismic research has been carried out. Ages of recent strong earthquake activity and earthquake recurrence intervals are not clear, which greatly limit the accuracy of seismic risk assessment. In this study, we investigated the fault geometry and faulted landforms in Ngari area, collected OSL samples of the faulted landforms and sag ponds in Zhaxigang, Menshi and Baga towns and preliminarily discussed the ages of recent strong earthquake activity.

Study shows that the fault can be divided into three sections by Zhaxigang town and Suoduo village, and the structure and properties of each section are significantly different. In west Zhaxigang town section, the fault is dominated by dextral strike-slip with certain vertical movement, it is almost straight on the surface, with river terraces, alluvial-proluvial fans and water system faulted ranging from tens to hundreds of meters. In Zhaxigang town to Suoduo village section, the normal faulting is remarkable, the main fault constitutes the boundary fault between Ayilari Mountain and Gar Basin; fault facets and fault scarps are common along the fault line, there are also secondary faults with the same or opposite dip as the main fault developed near the piedmont basin. In east Suoduo village section, the main part of the fault is located at the south foot of Gangdise Mountain, and in addition to the piedmont fault, several approximately parallel faults are also developed on the southern alluvial-proluvial fans and moraine fans which are mainly dextrally faulted with certain vertical component.

According to the analysis of the faulted landforms and dating of the OSL samples collected from the sag ponds and faulted landforms in the west of Zhaxigang town, the east of Menshi town and the east of Baga town, the ages of recent strong earthquake activity on the fault are analyzed as follows. In the west of Zhaxigang town, the age of recent strong earthquake activity of the fault is constrained to be close to 2.34kaBP according to the average OSL dating results of KKF-3 and KKF-4. In the east of Menshi town, the recent earthquake activity age of fault f₂ is 4.67~3.01kaBP, but closer to 3.01kaBP according to the OSL dating results of KKF-11 of the youngest faulted geomorphic surface and average OSL dating results of KKF-6 and KKF-13 collected from sag ponds. In the area near Angwang village, Baga town, it is inferred that the recent strong earthquake activity age of the fault is close to 2.54kaBP according to the OSL dating results of KKF-2 collected from sag pond. If the faults of above three places are active at the same time, the age of recent strong earthquake activity of the fault is close to 2.63kaBP. The Karakorum Fault in Ngari area has obvious segment boundaries, and the activity of each segment and in its internal branch faults is most likely to be independent.

The earthquake recurrence interval on the fault is estimated to be 2.8ka according to the slip rate and the amount of displacement. From the above analysis, it can be seen the time since the last strong earthquake activity of Karakorum Fault may have been very close to the interval of earthquake recurrence. If the fault is characterized by a quasi-periodic in-situ recurrence, the energy accumulation in the fault may have reached a very high degree and the risk of recurrence of strong earthquake events of the fault may be very high, so more attention should be paid and more detailed research on the paleo-earthquake events and recurrence intervals should be carried out as quickly as possible.

Key words: Karakorum Fault, late Quaternary, faulted landform, ages of recent strong earthquake activity

摘要：

喀喇昆仑断裂是青藏高原西部一条大型边界断裂, 调节了印度板块与欧亚板块的碰撞变形, 在青藏高原西部构造演化过程中扮演着重要角色。阿里地区断裂迹线清晰, 断错地貌显著, 显示出晚第四纪强烈活动的特征。目前, 断裂最近的强震活动时代、复发间隔等地震活动性参数尚不清楚, 极大地限制了地震危险性评估的准确性。文中对阿里地区的断裂几何结构、断错地貌进行了调查, 在扎西岗乡、门士乡、巴嘎乡等地对断错地貌面及断塞塘进行了光释光年代样品采集。研究结果表明, 断裂以扎西岗乡、索多村为界分可为3段, 各段断裂结构及性质差异显著; 断裂最近的强震活动在扎西岗乡西、门士乡东以及巴嘎乡一带, 时间分别约为2.34kaBP、 3.01kaBP及2.54kaBP。断裂最近的强震活动距今的时间可能已非常接近地震复发间隔, 其能量积累或已达到了非常高的程度, 再次发生强震事件的危险性很大, 需引起足够重视, 尽快对断裂的古地震事件、复发间隔等地震活动性参数开展细致的研究。

关键词: 喀喇昆仑断裂, 晚第四纪, 断错地貌, 最近强震活动时代

CLC Number:

P315.2

XU Wei, LIU Zhi-cheng, WANG Ji, GAO Zhan-wu, YIN Jin-hui. PRELIMINARY STUDY ON FAULTED LANDFORMS AND AGES OF RECENT STRONG EARTHQUAKE ACTIVITY ON THE KARAKORUM FAULT IN NGARI, TIBET[J]. SEISMOLOGY AND GEOLOGY, 2022, 44(4): 925-943.

徐伟, 刘志成, 王继, 高战武, 尹金辉. 西藏阿里地区喀喇昆仑断裂断错地貌及最近强震活动时代的初步研究[J]. 地震地质, 2022, 44(4): 925-943.

Figures/Tables 12

Fig. 1 Regional tectonic framework of Karakorum Fault( modified from Cowgill, 2010)

Fig. 2 Distribution characteristics of Karakorum Fault in Ngari Prefecture.

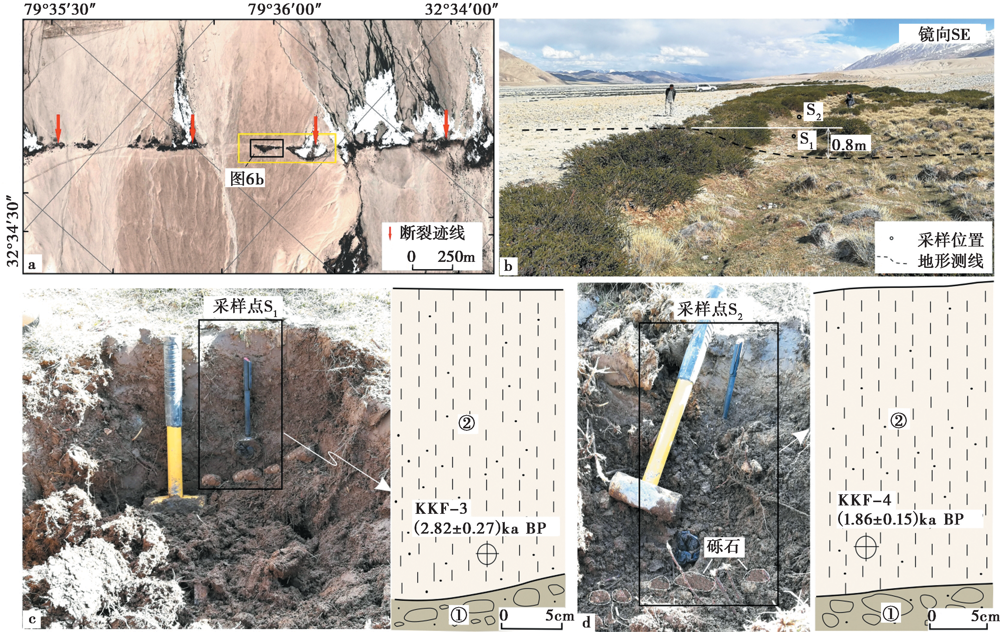

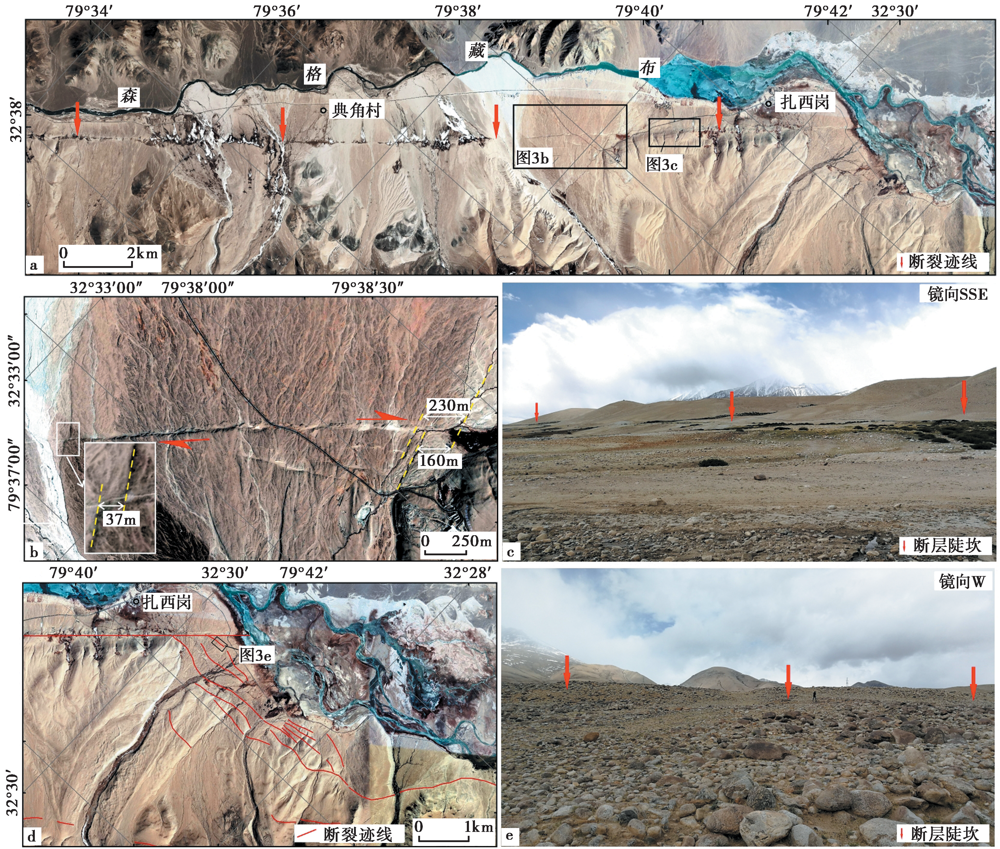

Fig. 3 Satellite image and typical faulted landforms of the west Zhaxigang town section.

Fig. 4 Typical fault distribution, fault facets and fault scarps of Zhaxigang town to Suoduo village section.

Fig. 5 Typical fault distribution satellite image and faulted landforms of the east Suoduo village section.

Fig. 6 Sampling locations(a, b)and profiles(c, d)in sag pond west of Zhaxigang town.

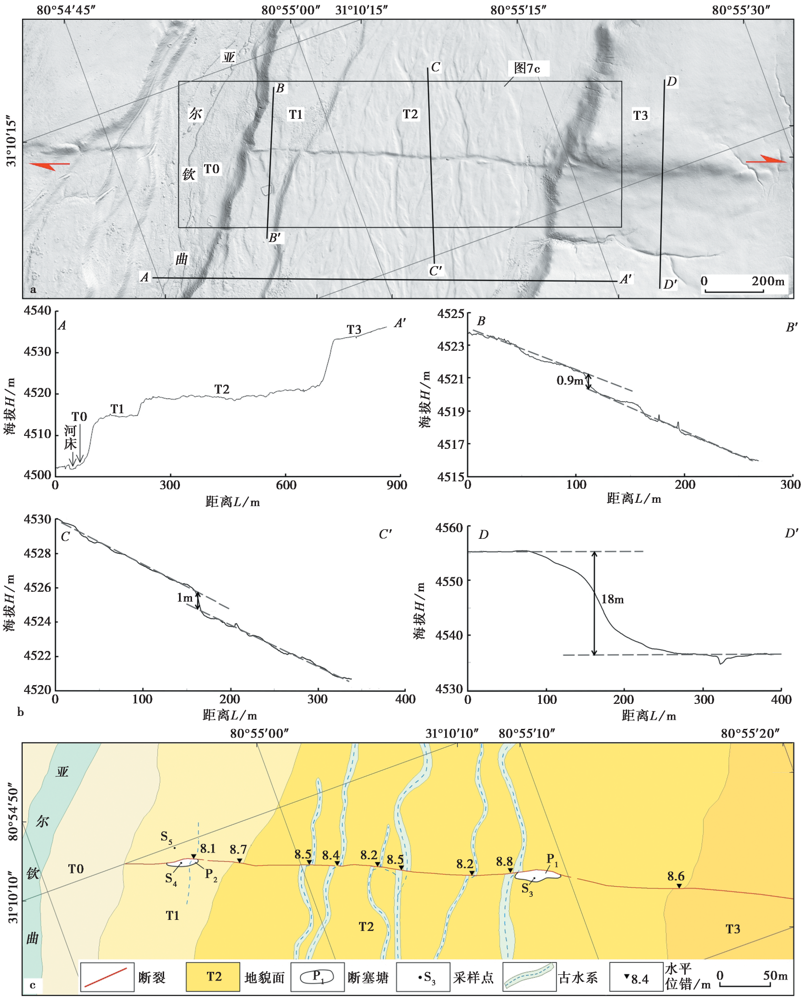

Fig. 7 DEM image(a), typical topographic elevation lines(b), river offset and geomorphic surface interpretation(c)along the fault east of Yaerqin River.

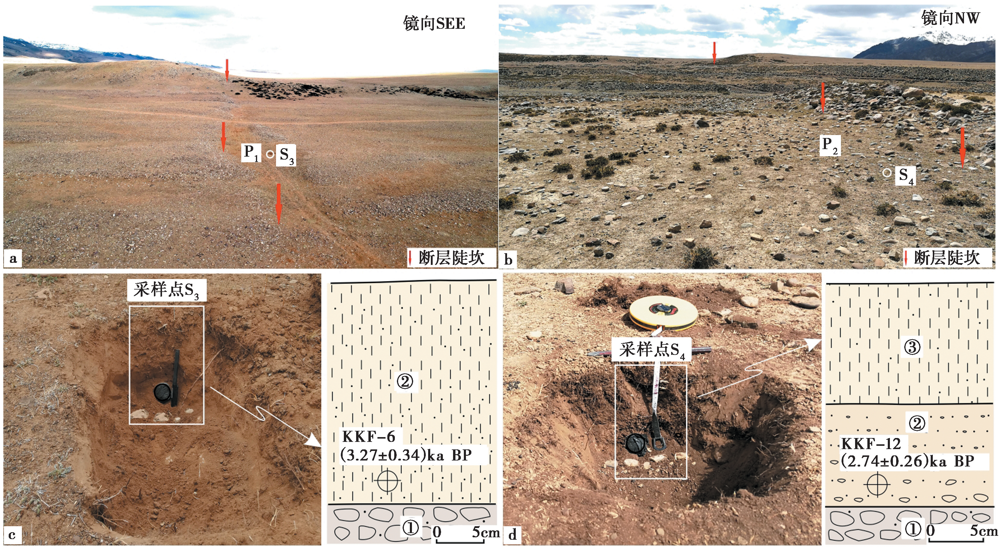

Fig. 8 Sampling location S3 and S4 in sag pond P1 and P2, and corresponding sampling profiles.

Fig. 9 Fault trace and sag pond distribution(a), DEM image(b), and typical topographic elevation line(c)south of Angwang village.

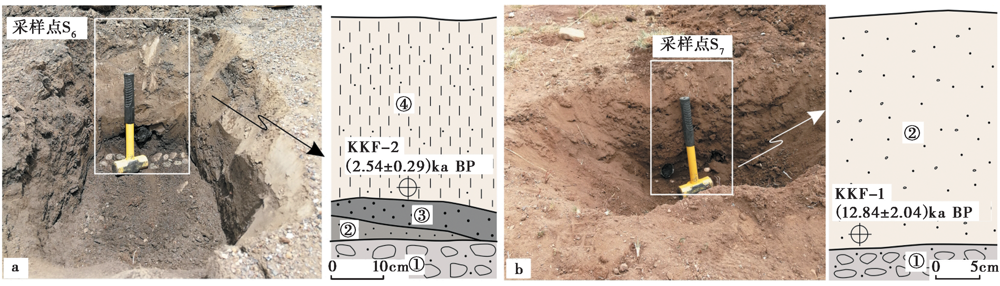

Fig. 10 Photos showing the sampling at site S6 and S7, and corresponding sampling profiles.

Table 1 OSL test parameters and age of samples

样品编号	埋深 /m	U /μg·g^-1	Th /μg·g^-1	K /%	含水量 /%	环境剂量率 /Gy·ka^-1	等效剂量 /Gy	年龄 /ka
KKF-1	0.28	4.04±0.08	16.5±0.26	3.00±0.02	14.09	5.83±0.38	74.93±10.88	12.84±2.04
KKF-2	0.34	1.7±0.01	18.5±0.14	2.14±0.01	7.39	4.84±0.32	12.3±1.15	2.54±0.29
KKF-3	0.21	1.67±0.03	19.5±0.30	2.74±0.01	22.86	4.74±0.28	13.35±1.00	2.82±0.27
KKF-4	0.24	2.36±0.03	28.8±0.29	2.81±0.01	26.37	5.59±0.31	10.39±0.56	1.86±0.15
KKF-6	0.18	3.38±0.06	20.2±0.26	2.61±0.01	6.37	6.09±0.42	19.93±1.56	3.27±0.34
KKF-11	0.25	2.26±0.04	15.7±0.20	1.76±0.01	4.93	4.51±0.31	21.07±1.69	4.67±0.49
KKF-12	0.17	2.27±0.04	14±0.16	1.67±0.01	2.52	4.39±0.30	12.01±0.78	2.74±0.26

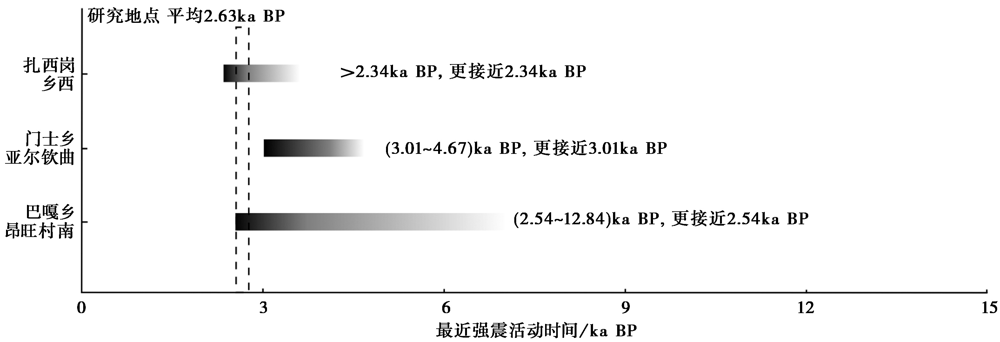

Fig. 11 Comparison of ages of recent strong earthquake activity in different parts of the fault.

References 41
