SEISMOLOGY AND GEOLOGY ›› 2023, Vol. 45 ›› Issue (1): 208-230.DOI: 10.3969/j.issn.0253-4967.2023.01.012

Previous Articles     Next Articles

CHARACTERISTICS OF TECTONIC STRESS FIELD AROUND THE YANGBI MS6.4 EARTHQUAKE AND ITS SURROUNDING AREAS ON MAY 21, 2021 AND ITS GEODYNAMIC IMPLICATION

FAN Wen-jie()

  1. Yunnan Earthquake Agency, Kunming 650224, China
  • Received:2022-05-04 Revised:2022-09-18 Online:2023-02-20 Published:2023-03-24

2021年5月21日漾濞MS6.4地震及周边的构造应力场特征和动力学意义

樊文杰()

  1. 云南省地震局, 昆明 650244
  • 作者简介:樊文杰, 男, 1990年生, 2016年于中国地震局地壳应力研究所获固体地球物理学硕士学位, 工程师, 研究方向为震源机制与构造应力场, E-mail: fan_095011106@126.com
  • 基金资助:
    应急管理部国家自然灾害防治研究院基本科研业务专项(ZDJ2019-21);地震预测开放基金(2021EF0F10);中国地震局震情跟踪定向工作任务(2022010103);中国地震局地震科技星火计划项目(XH20062)

Abstract:

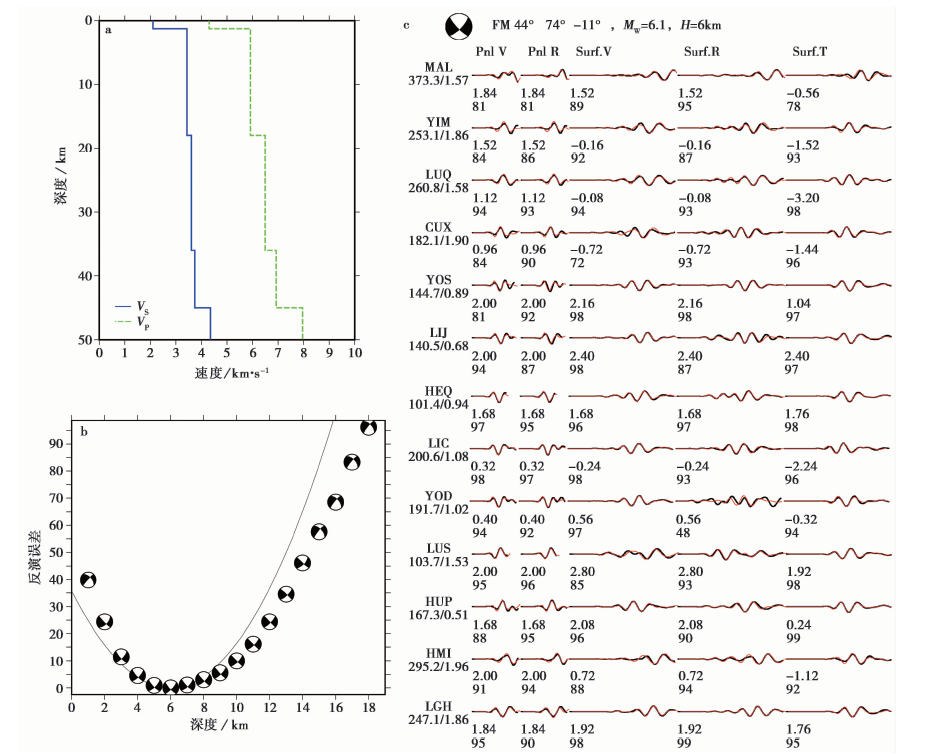

According to the determination of China Seismological Network, at 21:48:34 Beijing time on May 21, 2021, an MS6.4 earthquake occurred in Yangbi County, Dali Bai Autonomous Prefecture, Yunnan Province. The epicenter(25.67°N, 99.87°E)is located on the southwest boundary of the Sichuan-Yunnan rhombic block, with a focal depth of 8km. On the basis of the survey results of the Yunnan Eartquake Agency, the highest intensity in the earthquake area is VIII degree, and the long axis of the isoseismic line is NW-striking. We calculated the focal mechanism solutions of 11 MS≥4.0 events of May 21, 2021, Yangbi earthquake by the CAP method. Combined with the collected focal mechanism solutions of the surrounding historical earthquakes, we inverted the tectonic stress field around the epicenter and its adjacent areas and simulated the relative stress value and the distribution of the focal mechanism solution in the Yangbi area. We analysis and studies the characteristics of tectonic stress field variation in the study area and its relationship with earthquakes, dynamic significance and seismogenic mechanism. The results show that: 1)The Yangbi earthquake sequence and the focal mechanism solutions of historical earthquakes near the epicenter are mostly of strike-slip type, followed by the normal-fault type. 2)The Yangbi earthquake sequence is mainly distributed in the depth range of 4~8km. The depth of earthquakes in the study area is mostly above 15km underground, and they mainly occur in the brittle upper crust. The tectonic stress field is strike-slip type in the Yangbi source area, and the maximum principal stress is the NNW-SSE direction, which is basically consistent with the known regional tectonic stress field. The regional inversion results show that the maximum principal stress axis(σ1 axis)of the Sichuan-Yunnan rhombic block in the northeastern part of the study area is the NNW-SSE direction, and the minimum principal stress axis(σ3 axis)is the NEE-SWW direction. In the Lanping-Simao block, the σ1 axis becomes nearly NS, and the σ3 axis is close to EW. For the Tengchong and Baoshan blocks in the southwest part, the σ1 axis rotates in the NNE-SSW direction, and the σ3 axis is in the NWW-SEE direction. Judging from the uncertainty range under the 95%confidence level of the maximum principal stress azimuth, the variation range of the inversion results of most grid points in the study area is within 20°, indicating that the inversion results are relatively stable. In general, the orientation of the maximum principal stress axis and the minimum principal stress axis show a clockwise rotation trend from northeast to southwest. And the maximum principal stress axis direction distribution is similar to the GPS horizontal velocity field and other stress data results. The stress orientation inside the Sichuan-Yunnan block, Tengchong and Baoshan blocks is relatively consistent. But the stress changes in the block boundary zone, showing a certain difference, which may be caused by the difference in the dynamic action, movement mode and speed of the block. The regional tectonic stress field is affected by the interaction between different blocks. 3)The R-value increases gradually from northwest to southeast in the study area. And the increase in the R-value shows that the intermediate principal stress is mostly characterized by tensile stress, indicating that the compressive stress required for material migration decreases relatively. Combined with the geological tectonic background of the study area, it is considered that the movement speed of the block(material)gradually slows down, which is consistent with the surface deformation observations. According to the simulation results of the relative shear stress and relative normal stress of the Yangbi earthquake, the NW-oriented nodal plane of the Yangbi earthquake is the seismogenic fault plane of the earthquake. Combined with the seismic relocation and tectonic stress field inversion results, We analyzed the seismic mechanism of the Yangbi earthquake as follows: Under the NNW-nearly NS-trending tectonic stress, the NW-trending subvertical faults intersect with the regional principal compressive stress at a small angle, resulting in right-slip shearing along the optimal release nodal plane, and finally rupture leads to the occurrence of earthquakes. The Yangbi earthquake is located in the southwestern boundary zone of the Sichuan-Yunnan rhombic block. In recent years, the 2013 Eryuan MS5.5 and MS5.0 earthquakes and the 2017 Yangbi MS5.1 earthquakes were occurred along this boundary zone. The seismic activities here are very significant. The occurrence of moderate to strong earthquakes near the Sichuan-Yunnan rhombic block may indicate that the main active faults at the block boundary have accumulated a high level of elastic strain energy. In addition, the Yangbi earthquake manifested as a right-lateral strike-slip seismic activity on the NW-trending fault plane, and it is located southwest of the Sichuan-Yunnan rhombic block. It just shows that the Sichuan-Yunnan rhombic blockhas a SE-direction translational motion, which is consistent with the kinematic model of the Qinghai-Tibetan plateau material escaping eastward in the form of a rigid block, accompanied by a certain clockwise rotation, which is consistent with the long-term tectonic movement direction of the block. The Yangbi earthquake occurred under the dynamic background that the Sichuan-Yunnan rhombic block is continuously squeezed by the Qinghai-Tibetan plateau material. These research results have reference significance for understanding the seismic background and dynamic mechanism of the Yangbi earthquake.

Key words: the Yangbi MS6.4 earthquake, focal mechanism, tectonic stress field inversion, R value, relative stress value

摘要:

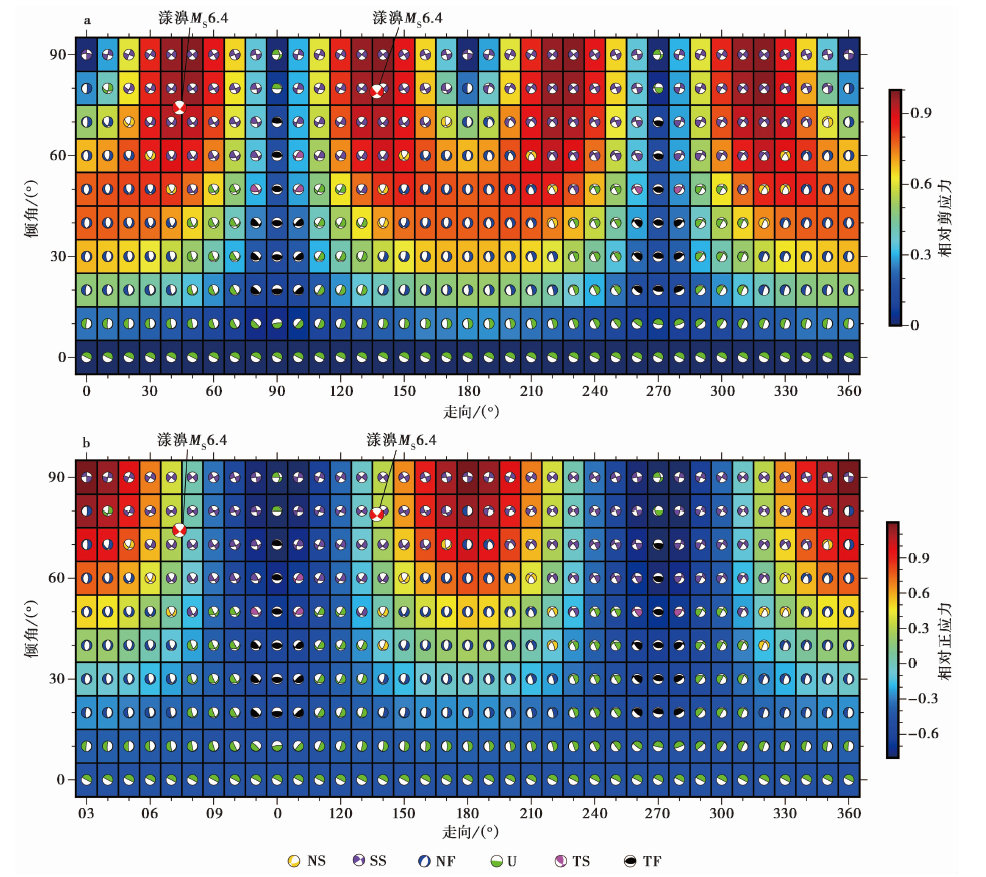

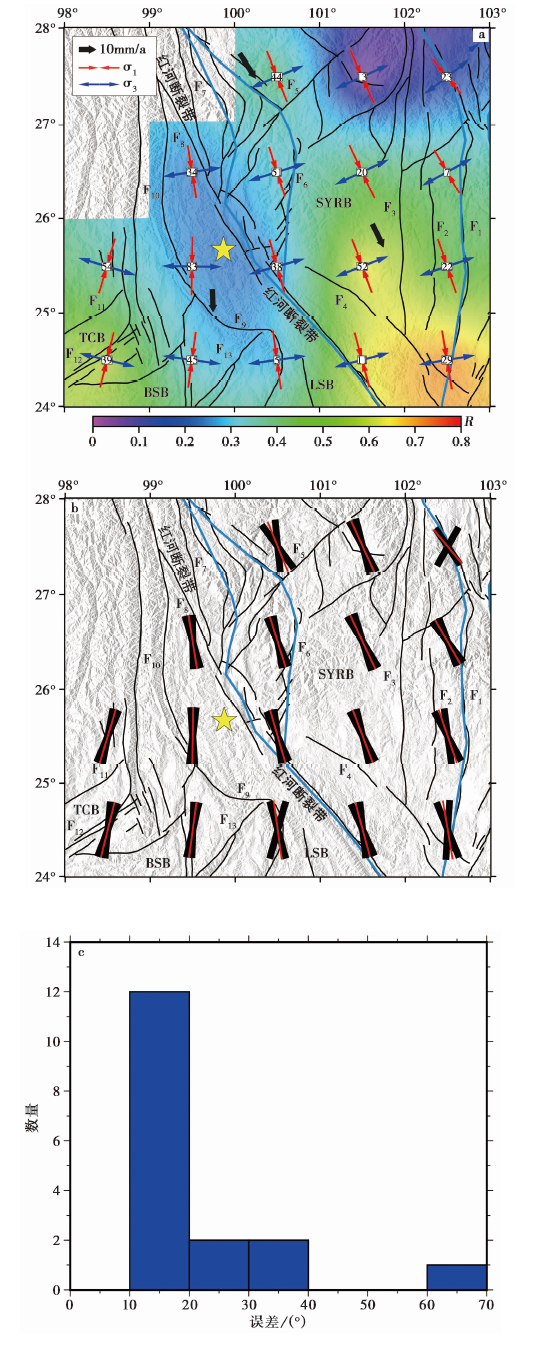

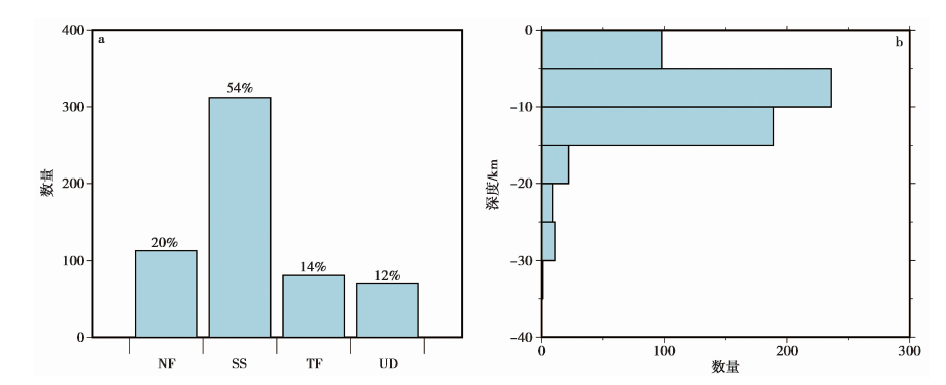

文中利用CAP方法计算了2021年5月21日漾濞地震序列MS≥4.0地震的震源机制解, 再结合收集到的周边历史地震的震源机制解, 反演计算了漾濞地震及周边区域的构造应力场, 并根据反演得到的应力张量模拟了漾濞地区的相对应力值大小和震源机制解分布情况。研究结果表明: 1)研究区以走滑型地震为主, 其次是正断型地震, 地震集中分布于15km以浅的深度范围, 主要发生在脆性上地壳。2)漾濞震源区的构造应力场属于典型的走滑应力结构, 最大主应力方位为NNW-SSE向, 与区域构造应力场基本一致。研究区的分区反演结果显示, 最大主应力轴和最小主应力轴的方位从东北至西南呈现出顺时针旋转的趋势。区内川滇菱形块体、 腾冲和保山等地块内部的应力方位分布一致性较好, 块体边界带是应力发生偏转的部位, 表现出一定的差异性, 区域构造应力场受到不同块体间相互作用的影响。3)应力形因子R值的分布上大致表现为自西北向东南逐渐增大, 说明物质运移所需的压应力相对变小, 结合研究区的地质构造背景认为, 地块(物质)的运动速度自西北向东南逐渐变缓。4)根据模拟计算的漾濞地震相对剪应力和相对正应力大小推测认为, 漾濞地震是在区域构造应力场作用下沿着最优释放节面滑动破裂而发生的, 更容易发生错动的NW向节面为此次地震的发震断层面。

关键词: 漾濞MS6.4地震, 震源机制, 构造应力场反演, R值, 相对应力值
