中更新世晚期以来中条山北麓断层滑动速率研究

张秀丽1)(), 熊建国1),*(), 张培震2,1), 刘晴日1,3), 姚勇4), 钟岳志3), 张会平1), 李有利3)

  1. 1)中国地震局地质研究所, 地震动力学国家重点实验室, 北京 100029
    2)中山大学地球科学与工程学院, 广东省地球动力作用与地质灾害重点实验室, 广州 510275
    3)北京大学城市与环境学院, 地表过程分析与模拟教育部重点实验室, 北京 100871
    4)中国科学院地质与地球物理研究所, 岩石圈演化国家重点实验室, 北京 100029
  • 收稿日期:2022-02-07 修回日期:2022-09-06 出版日期:2022-12-20 发布日期:2023-01-21
  • 通讯作者: 熊建国
  • 作者简介:张秀丽, 女, 1998年生, 现为中国地震局地质研究所构造地质学专业在读硕士研究生, 主要研究方向为活动构造与构造地貌, E-mail: 2547768244@qq.com
  • 基金资助:
    国家自然科学基金(41971002);国家自然科学基金(41888101)

STUDY ON THE SLIP RATE OF THE NORTH ZHONGTIAO SHAN FAULT SINCE THE LATE MIDDLE PLEISTOCENE

ZHANG Xiu-li1)(), XIONG Jian-guo1),*(), ZHANG Pei-zhen2,1), LIU Qing-ri1,3), YAO Yong4), ZHONG Yue-zhi3), ZHANG Hui-ping1), LI You-li3)

  1. 1)State Key Laboratory of Earthquake Dynamics, Institute of Geology, China Earthquake Administration, Beijing 100029, China
    2)Guangdong Provincial Key Laboratory of Geodynamics and Geohazards, School of Earth Science and Engineering, Sun Yat-sen University, Guangzhou 510275, China
    3)Key Laboratory of Earth Surface Process of Ministry of Education, Peking University, Beijing 100871, China
    4)State Key Laboratory of Lithospheric Evolution, Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing 100029, China
  • Received:2022-02-07 Revised:2022-09-06 Online:2022-12-20 Published:2023-01-21
  • Contact: XIONG Jian-guo

摘要:

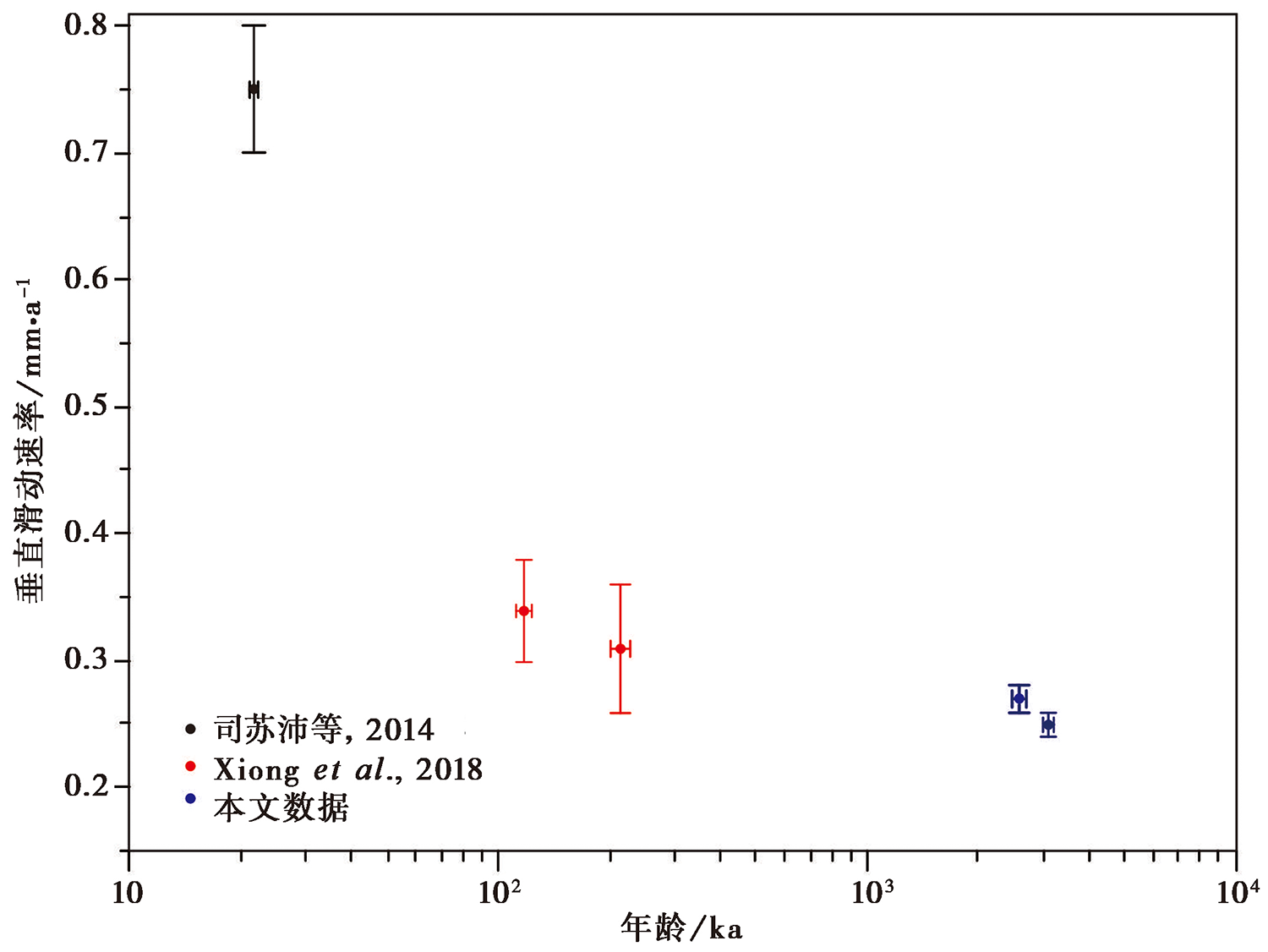

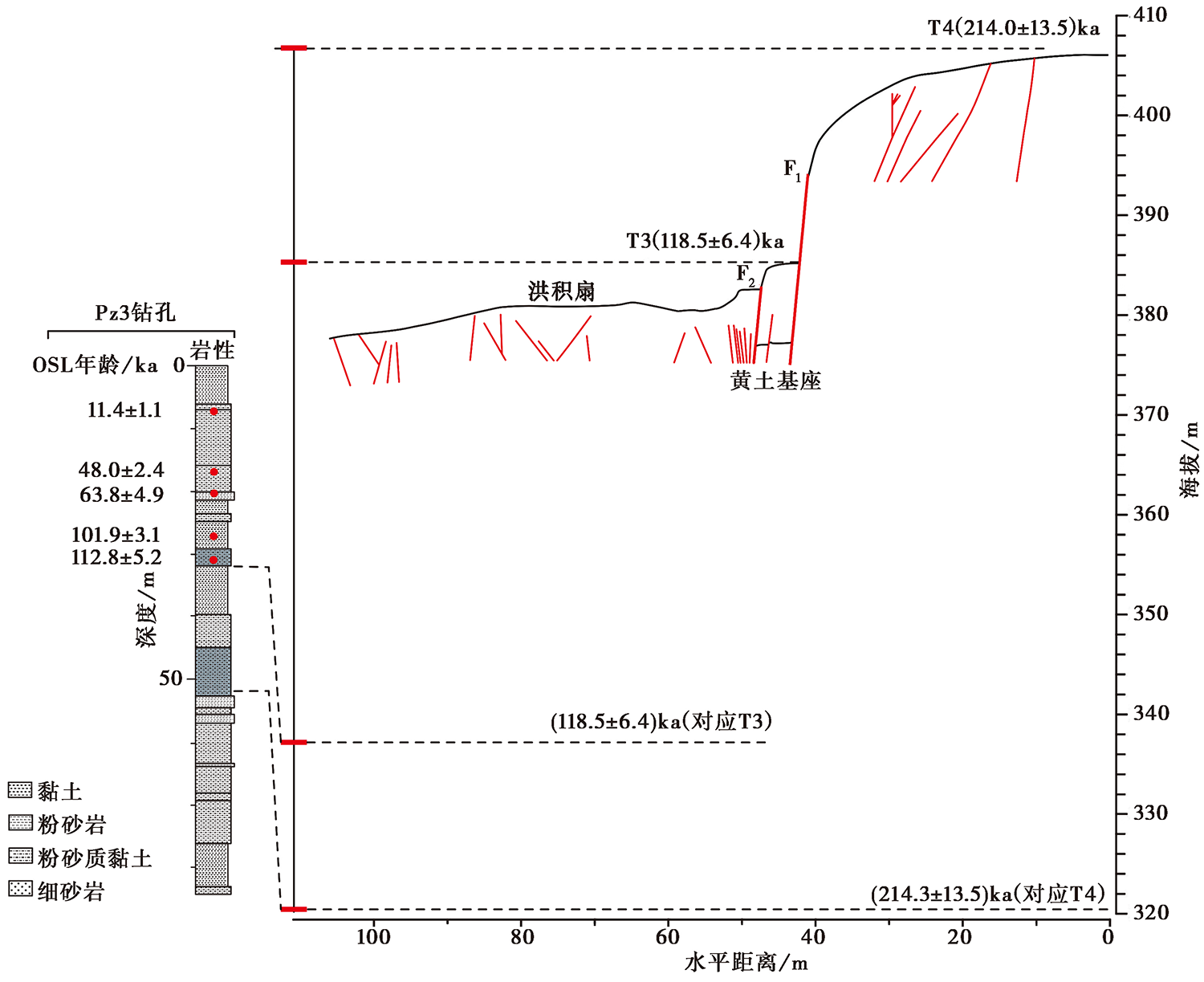

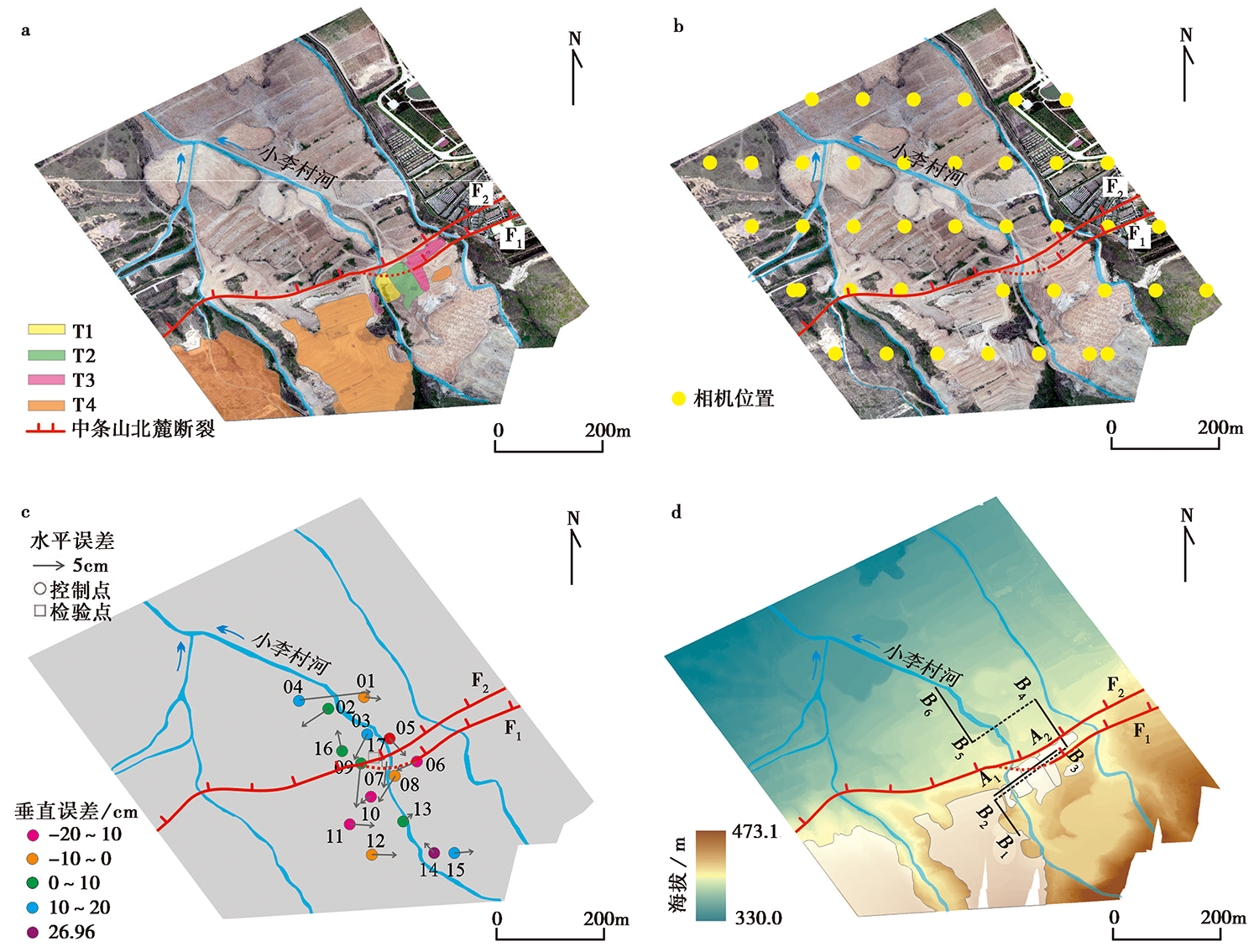

约束断层在不同时间尺度上的滑动速率, 有利于认识其活动性和区域构造特征。文中以山西地堑系南部中条山北麓断层为研究对象, 利用无人机摄影测量技术获取小李村河断错地貌的高精度DEM, 通过光释光和AMS 14C年代学约束河流阶地序列的废弃年代和地层的沉积时代, 建立中更新世晚期以来小李村河地貌演化与中条山北麓断层活动的关系。结合断层上盘钻孔所揭露的沉积地层和光释光年龄, 约束中条山北麓断层在中更新世晚期以来2个不同时段的垂直断距, 获得的相应滑动速率为0.3~0.4mm/a, 并简要讨论了晚新生代以来该断层滑动速率的变化。

关键词: 滑动速率, 河流阶地, 中更新世, 中条山北麓断层, 山西地堑系

Abstract:

Slip rate is an important parameter for the quantitative study of active fault and can be used to reflect the mode and intensity of fault activity. However, the selection of geomorphic surface, the acquisition of displacements, and the limitation of chronologic methods result in challenges to constrain the slip rate. A series of boreholes and geochronology studies revealed a continuous sedimentary sequence of the Quaternary in the Yuncheng Basin in the southern Shanxi Graben System. Multiple late Quaternary river terraces have developed and been preserved in the northern piedmont of the Zhongtiao Shan. The activities of the north Zhongtiao Shan Fault resulted in the elevation difference between the strata in the Yuncheng Basin and the river terraces. In this study, we chose the geomorphic units of the Xiaolicun River and combined them with the results of boreholes in the Yuncheng Basin to constrain the slip rates of the north Zhongtiao Shan Fault since the Late Pleistocene. Based on field observation and remote sensing image interpretation, we established the distribution and sedimentary characteristics of four terraces and the latest alluvial fan of the Xiaolicun River. Two main faults(F1 and F2)and a series of fractures or branch faults have been identified in these sedimentary strata. The high-resolution DEM of the faulted landform of the Xiaolicun River was obtained using UAV photogrammetry technology. Combined with a stratigraphic outcrop survey, the landform and sedimentary section across the fault were constructed. The abandonment ages of the terraces T4, T3, T2, and T1 have been determined as(214.3±13.9)ka, (118.5±6.4)ka, (59.6±2.4)ka, and(10.9±0.5)ka by OSL dating, respectively. The chronological results of the AMS 14C dating show that the alluvial fan north of F2 was deposited at 35~1ka. Based on these results, this study established the relationship between the geomorphic evolution of the Xiaolicun River and the activities of the north Zhongtiao Shan Fault. Since the late Middle Pleistocene, F1 had been active, accompanied by the abandonment of the T4. At~120ka, the terrace T3 was formed, F1 was no longer active, but F2 began to be active and raise T3 and T4 in the footwall. Since then, the Xiaolicun River has undergone rapid incision and formed T2 and T1. The continuous activities of F2 maintained T4-T1 in an uplifted state and formed a series of fractures in the alluvial fan. Based on this evolutionary relationship, T4, T3 and their corresponding strata in the boreholes of the Yuncheng Basin were used to constrain the slip rate of the north Zhongtiao Shan Fault in this study. After determining the depth in boreholes corresponding to the abandoned ages of T4 and T3, subtracting the influence of the surface slope and the activities of the southern Salty Lake Fault, and considering the depth error caused by climate change, the vertical displacements of the north Zhongtiao Shan Fault since the two periods were obtained with the vertical slip rate of(0.31±0.05)mm/a and(0.34±0.04)mm/a, respectively. Our results indicate that the slip rates of the north Zhongtiao Shan Fault since the late Middle Pleistocene are greater than those since the Late Pliocene and Quaternary.

Key words: slip rate, river terrace, Middle Pleistocene, north Zhongtiao Shan Fault, Shanxi Graben System
