地震地质 ›› 2023, Vol. 45 ›› Issue (1): 29-48.DOI: 10.3969/j.issn.0253-4967.2023.01.002

• 专题综述 • 上一篇    下一篇

大陆断层脆塑性转化带强度与孕震深度的定量研究

雷蕙如(), 周永胜()

  1. 中国地震局地质研究所, 地震动力学国家重点实验室, 北京 100029
  • 收稿日期:2022-04-19 修回日期:2022-08-28 出版日期:2023-02-20 发布日期:2023-03-24
  • 通讯作者: * 周永胜, 男, 1969年, 研究员, 从事高温高压岩石流变学实验研究, E-mail: zhouysh@ies.ac.cn。
  • 作者简介:雷蕙如, 女, 1995年生, 2022年于中国地震局地质研究所获得固体地球物理学博士学位, 研究方向为高温高压岩石力学实验, E-mail: leihuiru@ies.ac.cn
  • 基金资助:
    中国地震局地质研究所基本科研业务专项(IGCEA1813)

EMPIRICAL QUANTITATIVE ANALYSIS OF STRENGTH AND SEISMOGENIC DEPTHS FOR THE BRITTLE-DUCTILE TRANSITION OF CONTINENTAL FAULT ZONE

LEI Hui-ru(), ZHOU Yong-sheng()

  1. State Key Laboratory of Earthquake Dynamics, Institute of Geology, China Earthquake Administration, Beijing 100029, China
  • Received:2022-04-19 Revised:2022-08-28 Online:2023-02-20 Published:2023-03-24

摘要:

大陆断层脆塑性转化带的强度和滑动稳定性一直是断层力学中研究的重点。从20世纪末起, 前人针对脆塑性转化带的摩擦和流变特性开展了大量实验和理论研究, 探究脆塑性转化带的强度和变形机制随温度、 压力、 滑动速率等因素的变化规律。文中总结了描述断层脆塑性转化带强度和稳定性的半定量经验方程和定量本构方程, 对比了各种模型的优缺点, 发现通过数值拟合方法得到的经验模型高估了断层脆塑性转化带的强度, 而基于微观物理机制的脆塑性转化带强度模型更符合自然条件下的断层摩擦行为。但现有的微观物理模型还需进一步考虑剪切带中纳米颗粒的动力学影响及不同类型的微观变形机制约束。

关键词: 脆塑性转化带, 地壳强度, 断层滑动稳定性, 定量研究

Abstract:

The strength properties of fault rocks at shearing rates spanning the transition from crystal-plastic flow to frictional slip play a central role in determining the distribution of crustal stress, strain, and seismicity in a tectonically active region. Since the end of the 20th century, many experimental and modelling works have been conducted to elucidate the variation of the strength profile and mechanism of brittle-ductile transition(BDT)with temperature, pressure, and sliding rate. We review the substantial progress made in understanding the physical mechanisms involved in lithospheric deformation and refining constitutive equations that describe these processes. The main conclusions obtained from this study are as follows:

(1)The mechanical data and microstructure of friction and creep experiments indicated the transition from brittle to plastic deformation with the increasing crust depth, which not only controls the ultimate strength of the crustal profile but also limits the lower limit of the seismogenic zone. Moreover, based on the variation of rock characteristics, temperature, normal stress and sliding rate, the brittle-ductile transition zone distributes at different depths in the crust. The strength profile consisting of friction law and flow law is widely used to describe the strength and seismicity of the continental crust. However, this profile model is oversimplified in the BDT zone because this area involves a broad region of semi-brittle behavior in which cataclastic and ductile processes occur. At the same time, the model also lacks characterization of the transient dynamic properties of faults. Rate-and-state friction(RSF)law stipulates that the occurrence of slip instabilities(i.e. earthquake)can be linked with the velocity dependence of friction. Therefore, the RSF equations, when applied to the kilometer-scale of fault zones, models incorporation RSF equations can reproduce several important seismological observations, including earthquake nucleation and rupture, earthquake afterslip, and aftershock duration. However, these key microphysical processes of fault gouge evolution are unknown to this model.

(2)During numerical model-fitting experimental observations, the Friction-to-flow constitutive law merges crustal strength profiles of the lithosphere and rate dependency fault models used for earthquake modelling on a unified basis, which is better than controlling the boundary of BDT using the Mohr-Coulomb criterion, Von Mises criterion and Goetze’s criterion. The Friction-to-flow constitutive law can predict the steady-state and transient behavior of the fault, including the response of shear stress, sliding rate, normal stress, and temperature, in addition to simulating the transition of fault sliding stability from velocity-weakening to velocity-strengthening. It also solved seismic cycles of a fault across the lithosphere with the law using a 2-D spectral boundary integral equation method, revealing dynamic rupture extending into the aseismic zone and rich evolution of interseismic creep, including slow slip before earthquakes. However, these constitutive models do not base on microphysical behavior. Furthermore, at low to intermediate temperatures, the ductile rheology of most crystalline materials are different from those at high temperatures.

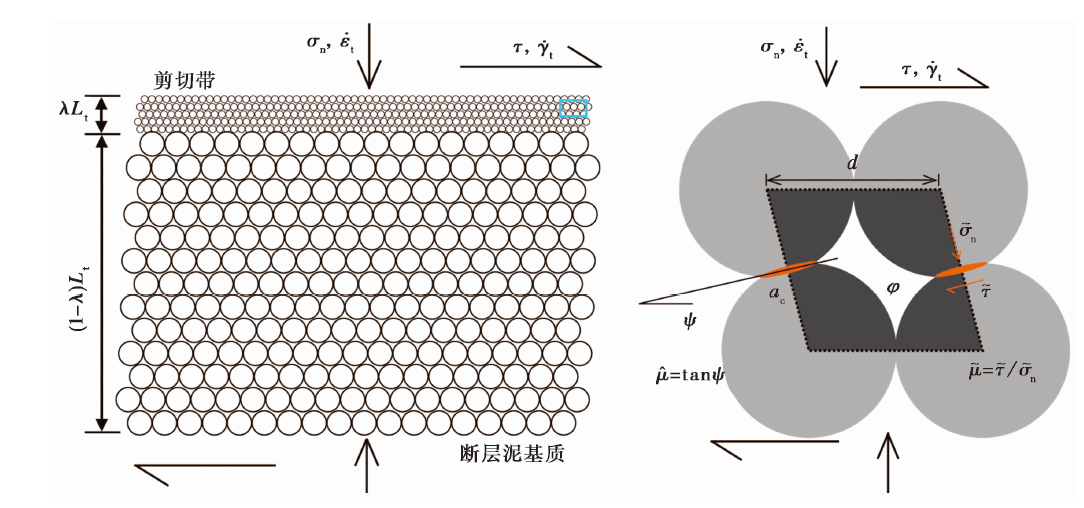

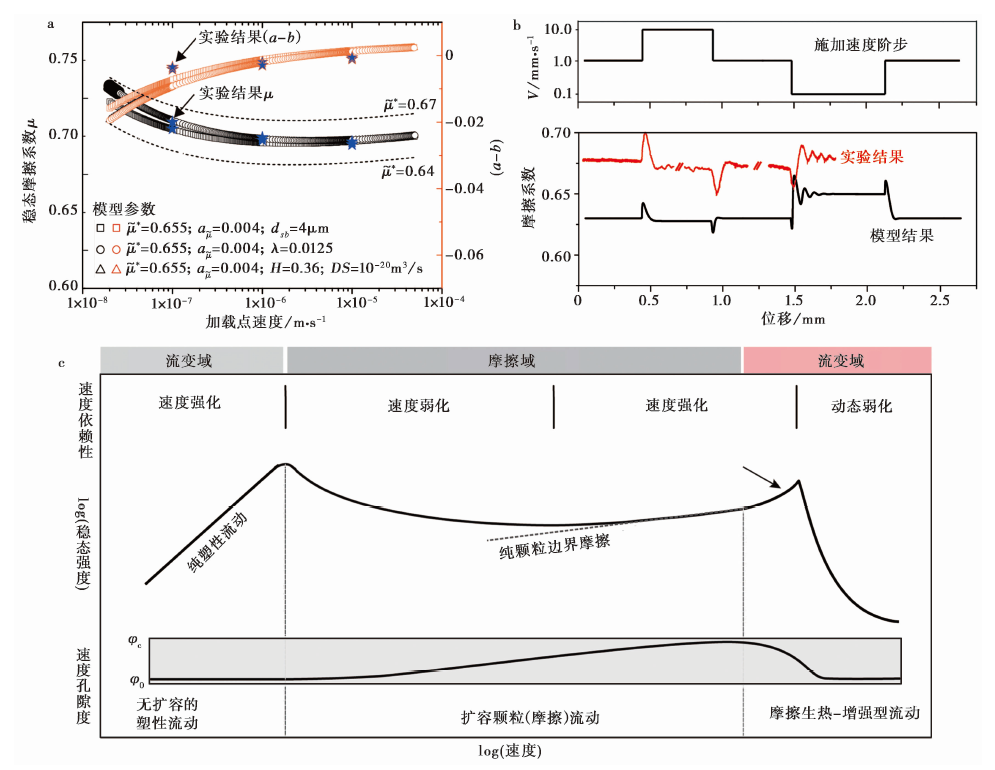

(3)A recent microphysical model, which treats fault rock deformation as controlled by competition between rate-sensitive(diffusional or crystal-plastic)deformation of individual grains and rate-insensitive sliding interactions between grains(granular flow), predicts both transitions well, called the CNS model. Unlike the numerical model, this model quantitatively reproduces a wide range of(transition)frictional behaviors using input parameters with direct physical meaning, which is closer to the natural strength of the fault. This mechanism-based model can reproduce RSF-like behavior in microstructurally verifiable processes and state variables. However, the major challenge in the CNS model lies in capturing the dynamics of micro- and nanostructure formation in sheared fault rock and considering the different processes of rock deformation mechanisms.

Since it is microphysically based, we believe the modelling approach can provide an improved framework for extrapolating friction data to natural conditions.

Key words: brittle-ductile transition, crustal strength, slip stability of fault, quantitative analysis
