地震地质 ›› 2022, Vol. 44 ›› Issue (3): 786-801.DOI: 10.3969/j.issn.0253-4967.2022.03.014

• 极低频地震电磁专题文章 • 上一篇    下一篇

强干扰环境下的大地电磁时间序列处理过程

张赟昀1)(), 王培杰2), 陈小斌1,2),*(), 詹艳2), 韩冰2), 王立凤2), 赵国泽2)

  1. 1)应急管理部国家自然灾害防治研究院, 北京 100085
    2)中国地震局地质研究所, 地震动力学国家重点实验室, 北京 100029
  • 收稿日期:2021-03-16 修回日期:2021-05-12 出版日期:2022-06-20 发布日期:2022-08-02
  • 通讯作者: 陈小斌
  • 作者简介:张赟昀, 女, 1994年生, 2019年于中国地质大学(武汉)获地球物理学专业硕士学位, 研究方向为大地电磁数据处理与解释, E-mail: yyz725@163.com
  • 基金资助:
    应急管理部国家自然灾害防治研究院基本科研业务专项(ZDJ2019-26);国家重点研发计划项目(2017YFC1500204-0002)

MAGNETOTELLURIC TIME SERIES PROCESSING IN STRONG INTERFERENCE ENVIRONMENT

ZHANG Yun-yun1)(), WANG Pei-jie2), CHEN Xiao-bin1,2),*(), ZHAN Yan2), HAN Bing2), WANG Li-feng2), ZHAO Guo-ze2)

  1. 1) National Institute of Natural Hazards, Ministry of Emergency Management of China, Beijing 100085, China
    2) State Key Laboratory of Earthquake Dynamics, Institute of Geology, China Earthquake Administration, Beijing 100029, China
  • Received:2021-03-16 Revised:2021-05-12 Online:2022-06-20 Published:2022-08-02
  • Contact: CHEN Xiao-bin

摘要:

天然源的大地电磁信号易受干扰影响, 导致阻抗估计结果不准确, 这种难以克服的缺陷制约着大地电磁法的应用范围。随着工业化发展, 人文干扰越发严重, 传统的数据处理方法已经不能改善强电磁干扰环境下的数据质量。文中结合大地电磁数据处理的基本理论对中国东部强干扰地区实测数据进行了处理。分析了稳健估计(Robust)处理、 分段叠加处理和分时处理等技术的处理效果, 总结了不同干扰情况下的数据处理方案。对于不同干扰特征的数据, 要综合分析Robust处理对数据的影响, 灵活应用Robust处理。为得到更好的处理结果, 应适当增加数据采集时间, 特别是夜间干扰较弱时段的数据采集时间。此外, 增加数据分段的个数, 提供更多可供编辑的功率谱也是得到优质数据的必要条件。

关键词: 大地电磁法, 强干扰, 数据处理, 远参考, 稳健估计

Abstract:

Magnetotelluric(MT)is a method of detecting electrical structures. The natural field source signal is weak, and there are many factors that affect the impedance estimation results, such as dead band, near-field interference, and random noise, so it is difficult to obtain accurate electromagnetic response in strong interference area. The stable and reliable impedance estimation is the premise for the follow-up inversion and interpretation. In order to suppress noise and improve the accuracy of impedance estimation, researchers have proposed various new data processing methods. However, these data processing methods are not widely used due to insufficient stability and poor applicability. The classic remote-reference method and robust estimation method are still the most widely used methods. This paper analyzes the characteristics of the strong interference data and the applicable scope of various data processing methods, combined with the processing effect of the measured magnetotelluric data in the strong interference area in eastern China, and summarizes a set of data processing strategies suitable for the strong interference area.

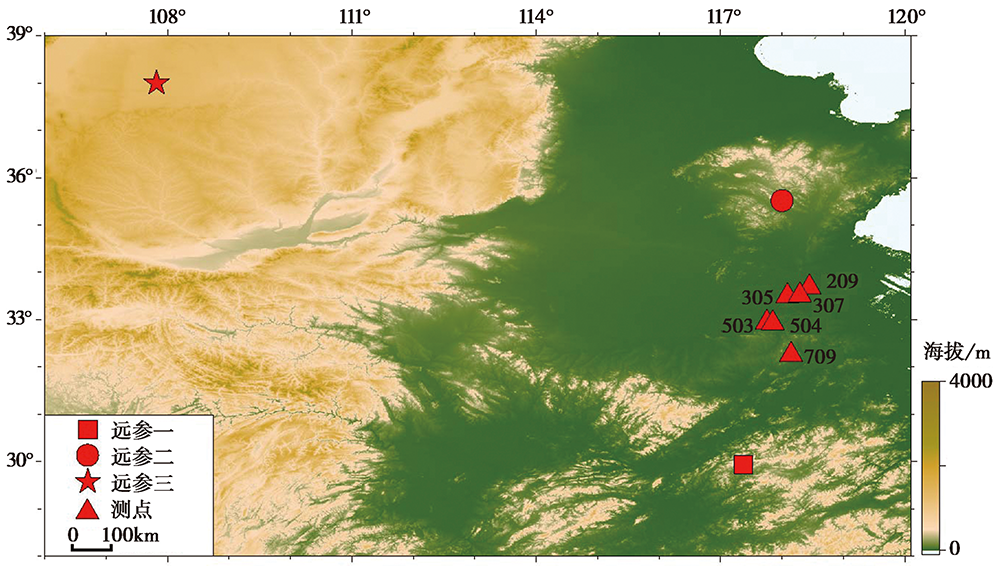

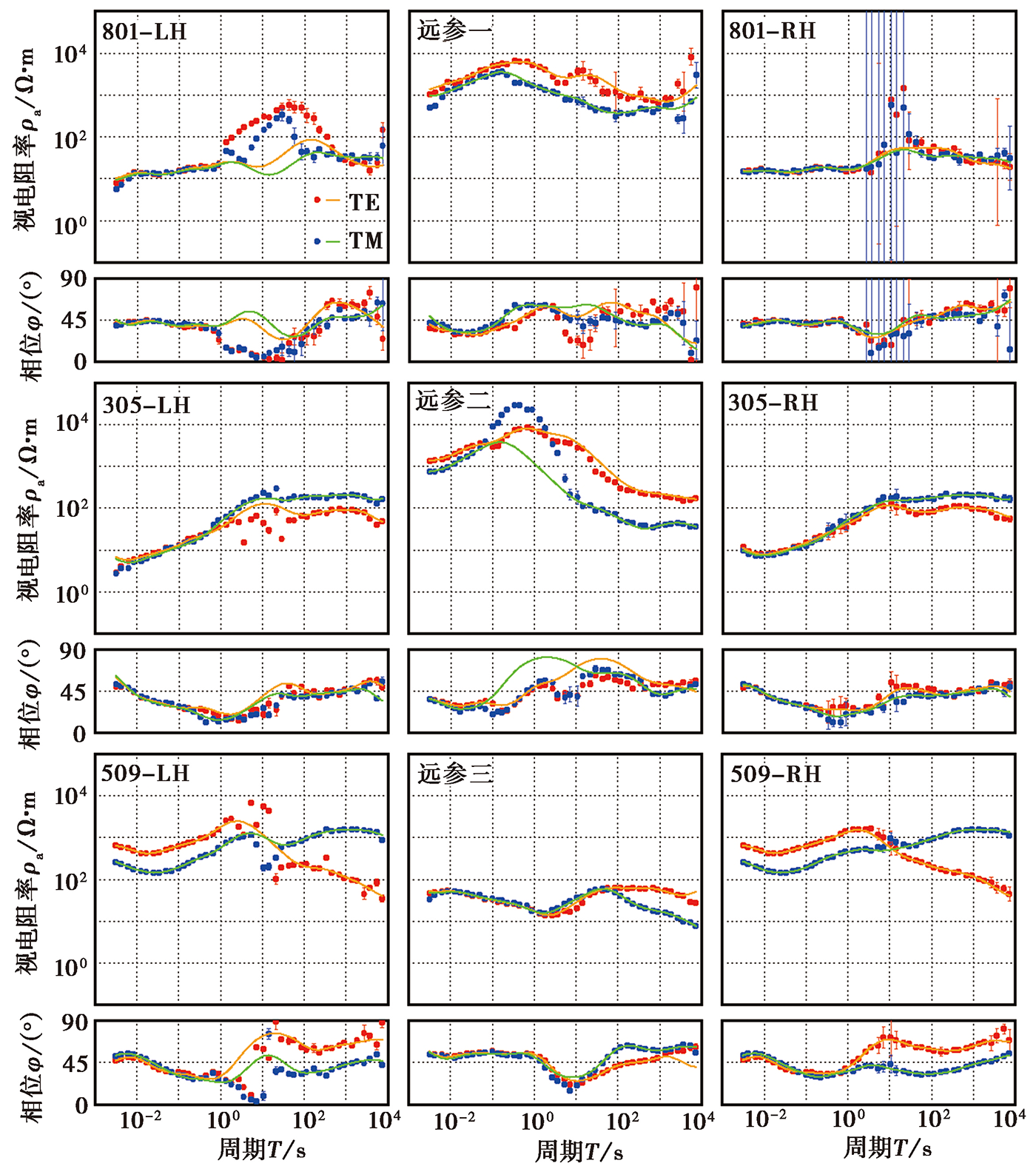

The remote-reference method can effectively suppress coherent noise. It is essential in data processing in strong interference areas. Usually, the results will be improved after processing by remote reference. The remote-reference site should be selected at a place far enough away from the measuring point without interference.

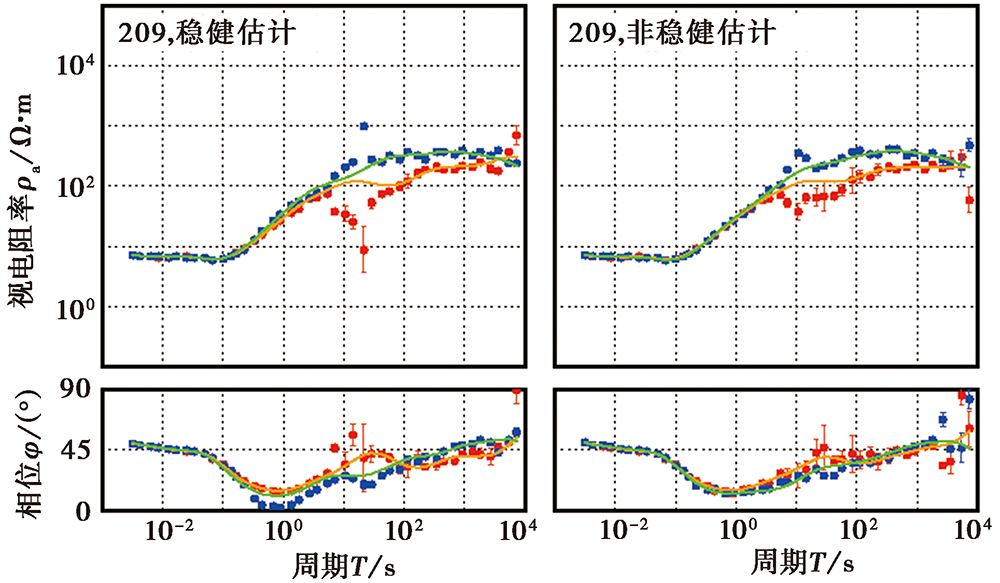

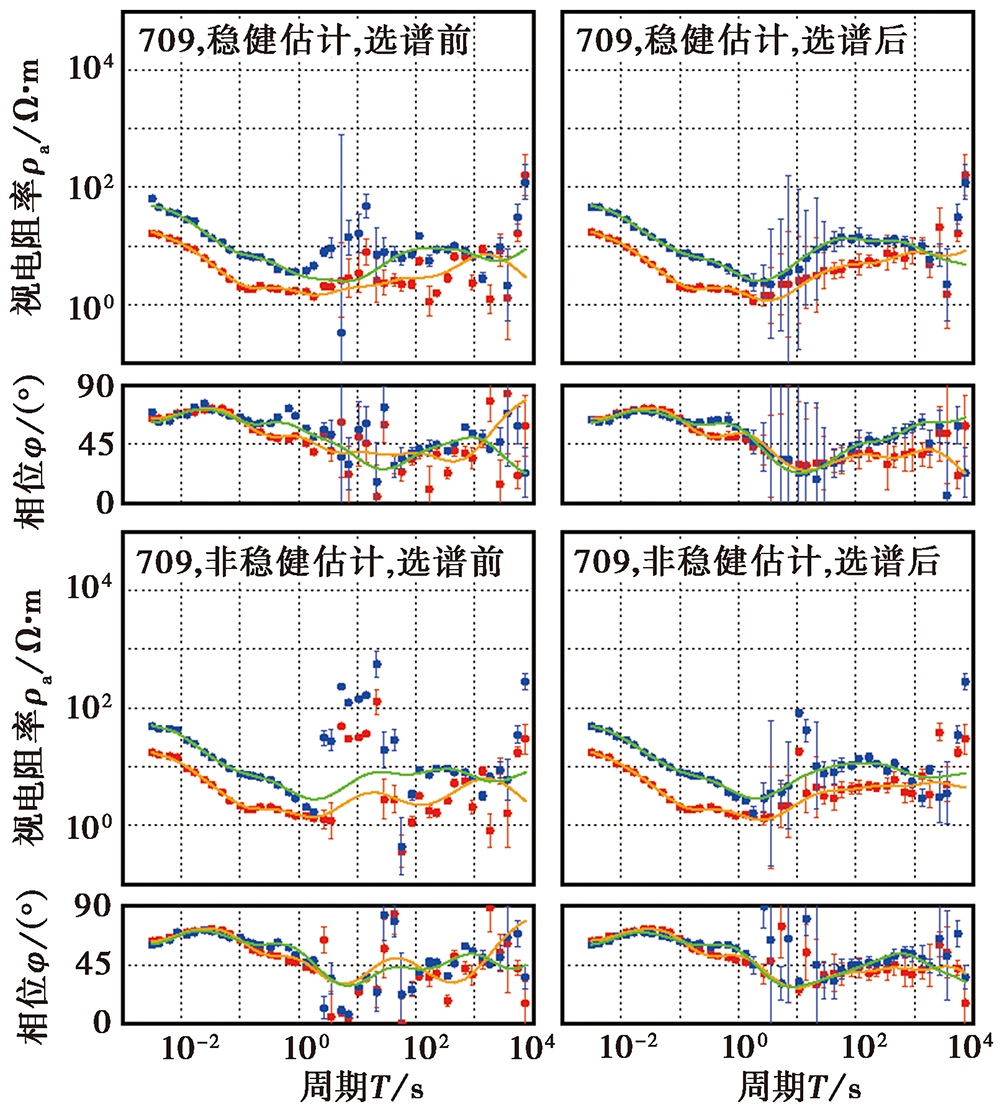

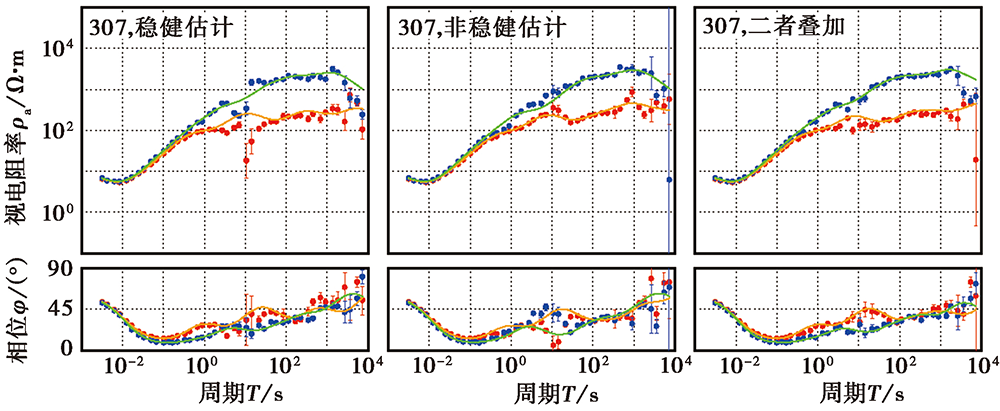

Robust estimation can highlight high-coherence signals and suppress low-coherence signals. In the dead band, the coherence of the natural field signal is higher than that of the background noise signal, so the robust estimation processing can improve the data processing result of the dead band. The intensity and coherence of the long-lasting near-field interference signal is higher than that of the natural-field signal. The robust estimation process will treat the near-field interference as the desired signal and suppress the natural source signal. Therefore, data containing long-term strong near-field interference is not suitable for using robust estimation but non-robust estimation. For data that is not well processed by the two methods, we can try a combination of the two. By carefully selecting the power spectrum obtained by the two methods, it is possible to improve the processing result.

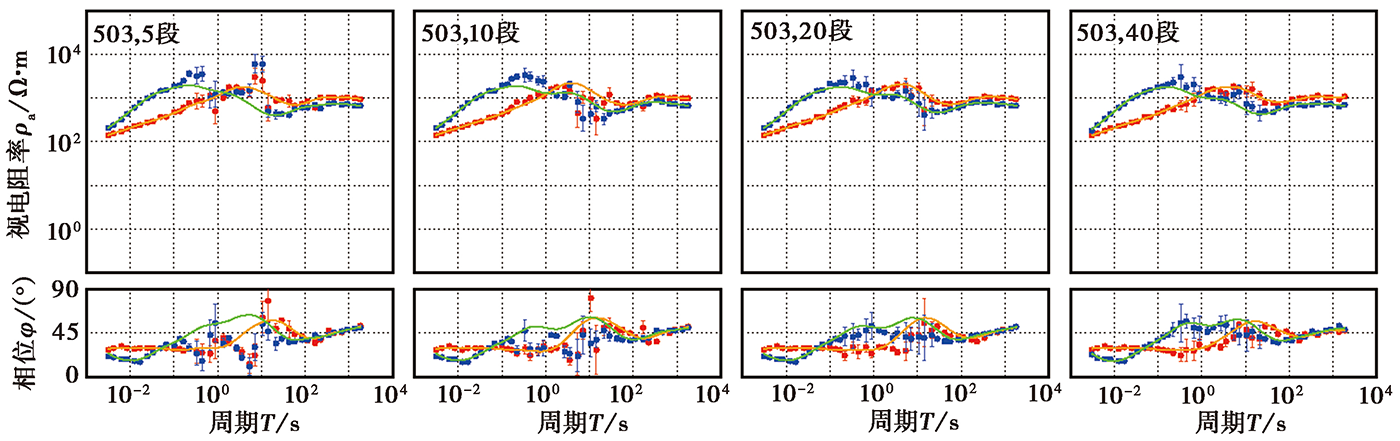

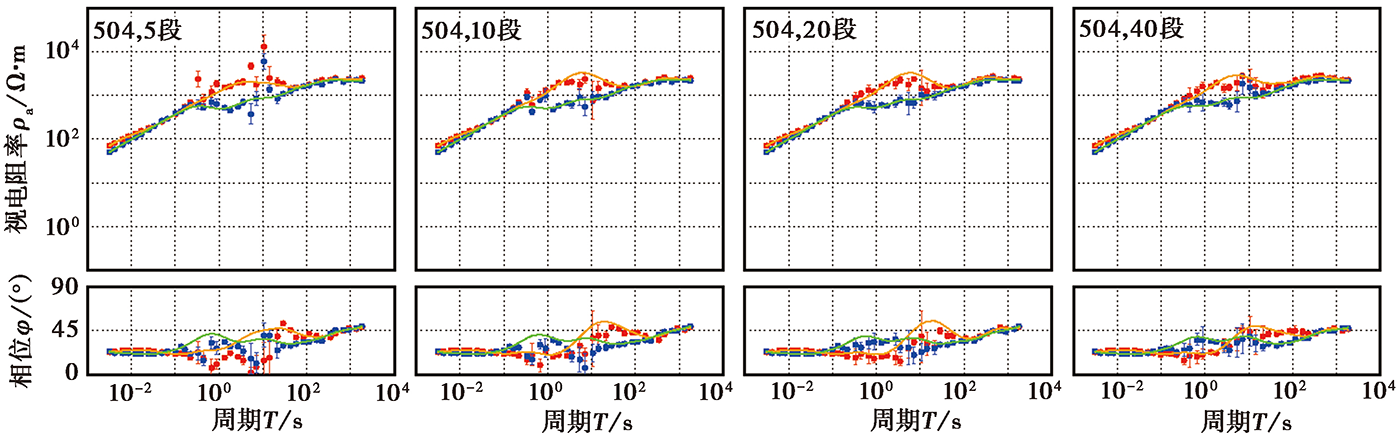

Increasing the number of data segments can provide more sets of power spectra for selection, and also increase the probability of obtaining higher quality power spectra. Through careful selection of multiple power spectra, it is more likely to obtain better processing results than when the number of segments is smaller.

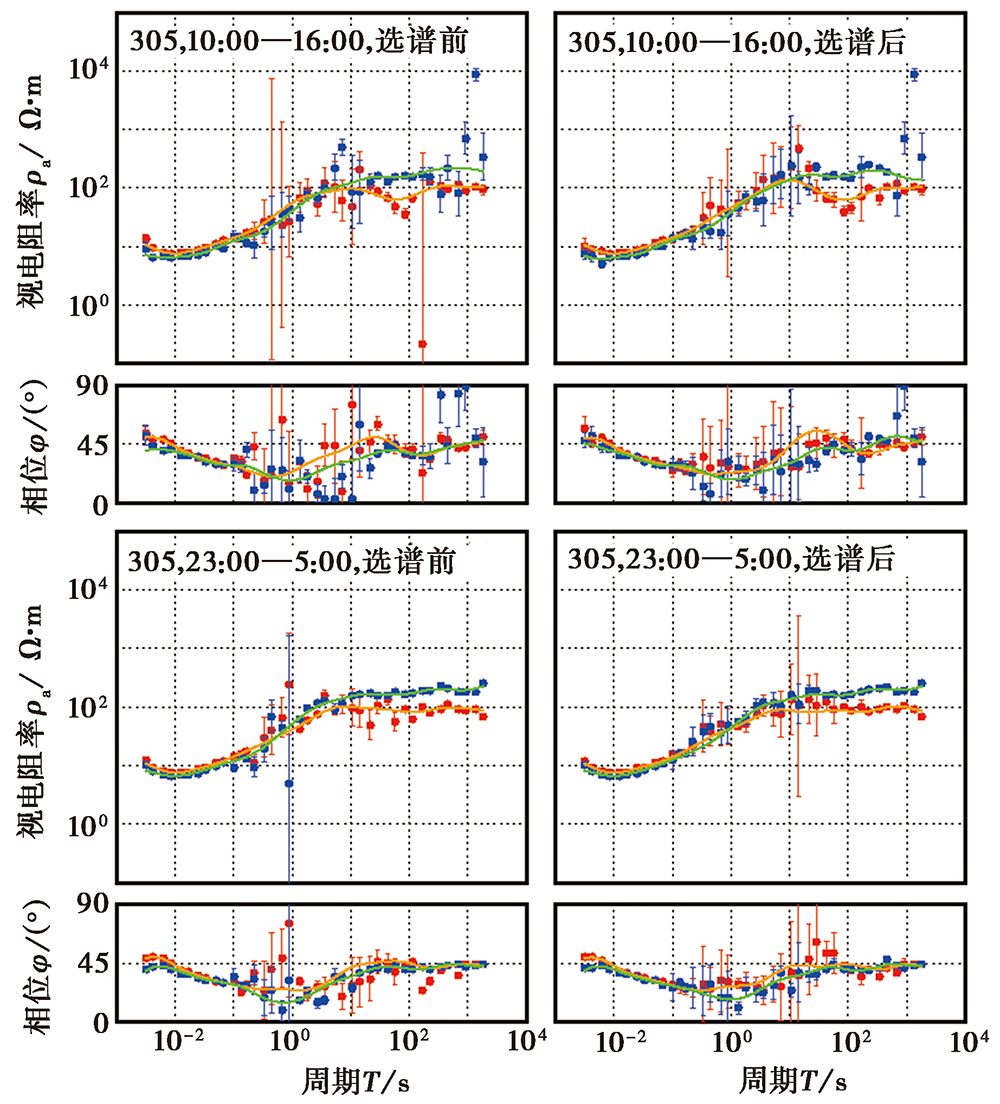

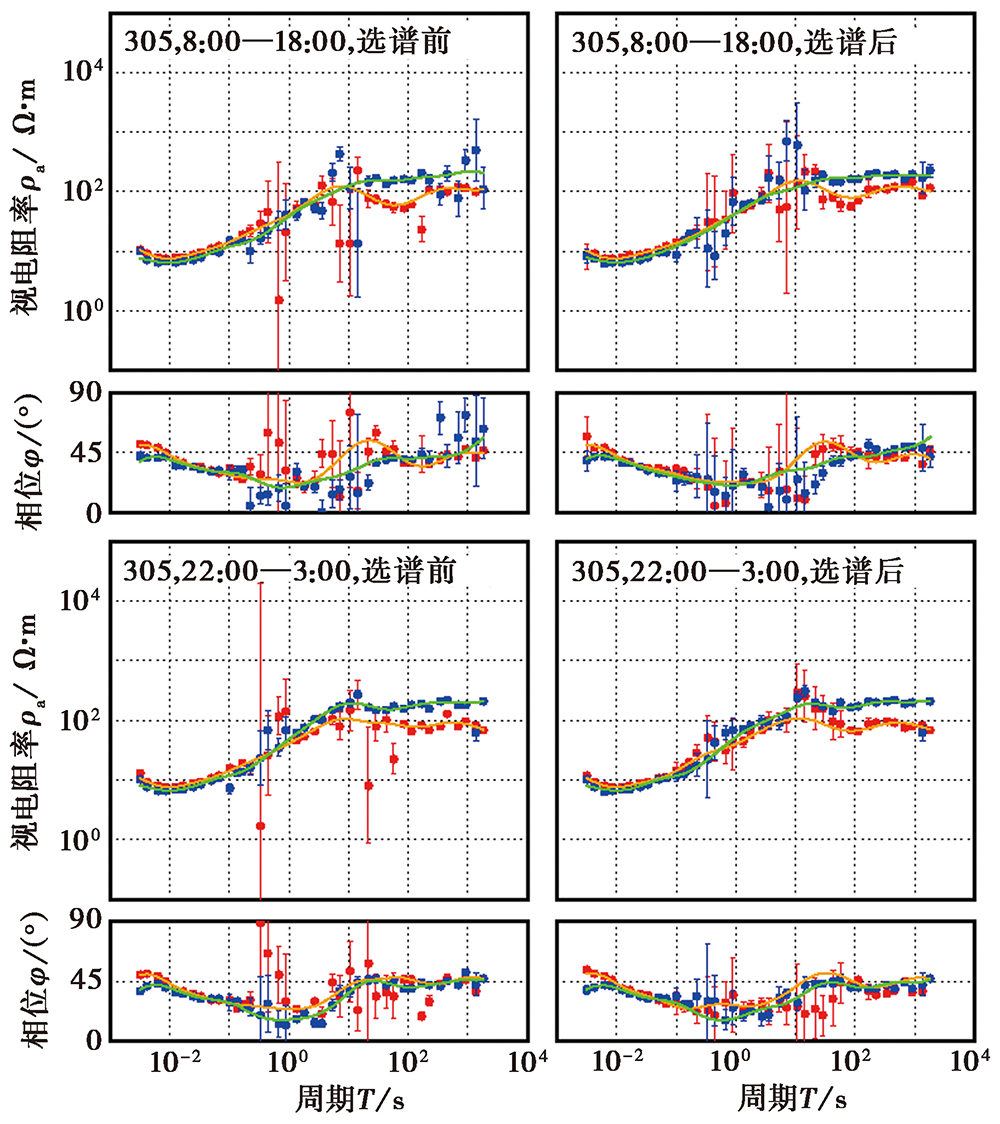

During the day when there is a lot of human activity, the interference signal is strong. And at night, the interference signal is weak. The measured data well proves this point, so we should extend the acquisition time at night as much as possible, and the data processing should also focus on the night data.

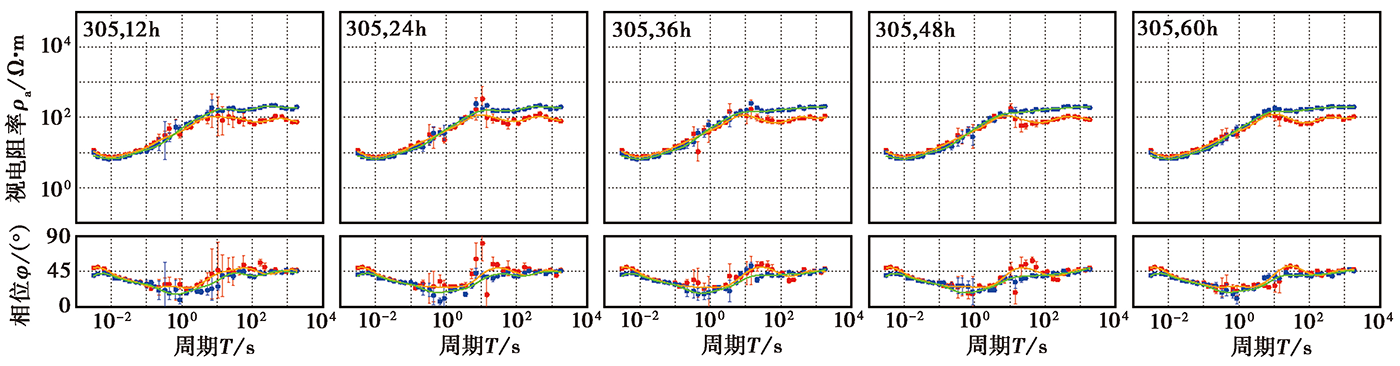

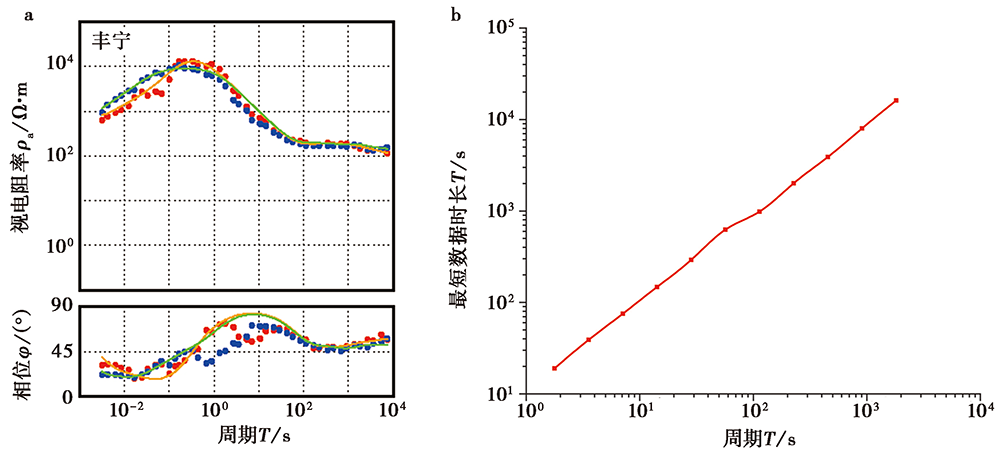

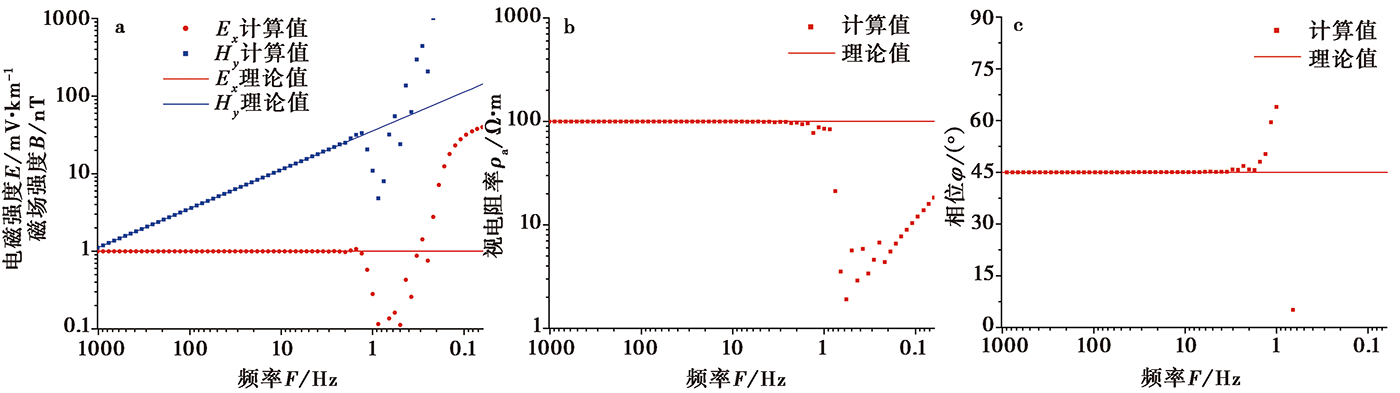

In general, it is more likely to obtain better data with longer acquisition time. Research on synthetic data shows that the maximum valid period of magnetotelluric theoretical data is 1/8 of the data duration. The measured data results of Fengning Station also support this conclusion. The longer the data acquisition time is, the more effective power spectra can be obtained, and the more likely it is to select a better quality spectrum from them, and obtain a stable impedance estimation result. Therefore, the data collection time should be adjusted reasonably according to the interference situation during the observation to ensure the stability of the impedance estimation result.

Magnetotelluric data processing methods are not invariable, and different data processing methods should be adopted according to the actual situation. When the better data processing method is not yet mature, flexible application of existing method is the necessary means for magnetotelluric data processing.

Key words: magnetotelluric, strong interference, data processing, remote reference, robust estimation
